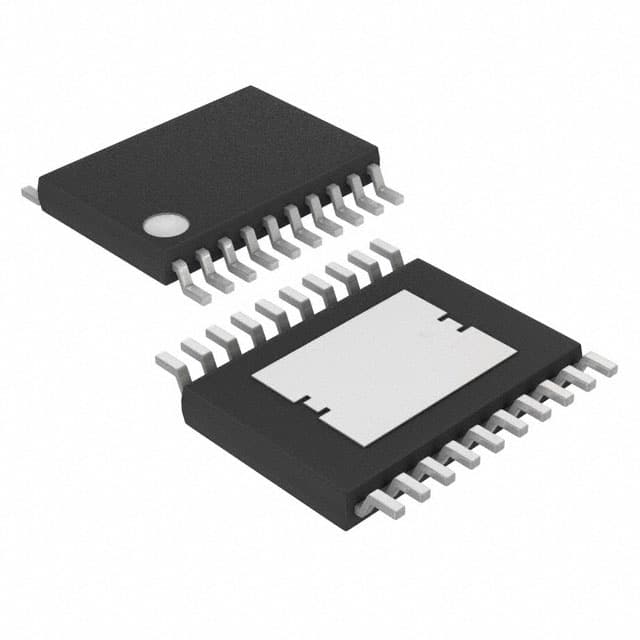

MAX16814AUP+T
IC LED DRVR CTRLR PWM 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 4 Output DC DC Controller SEPIC, Step-Down (Buck), Step-Up (Boost) PWM Dimming 150mA 20-TSSOP-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 24 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Voltage - Output | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Frequency | 200kHz ~ 2MHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | Backlight, Lighting |
| Current - Output / Channel | 150mA |
| Internal Switch(s) | No |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 20-TSSOP-EP |
| Dimming | PWM |
| Voltage - Supply (Min) | 4.75V |
| Voltage - Supply (Max) | 40V |
