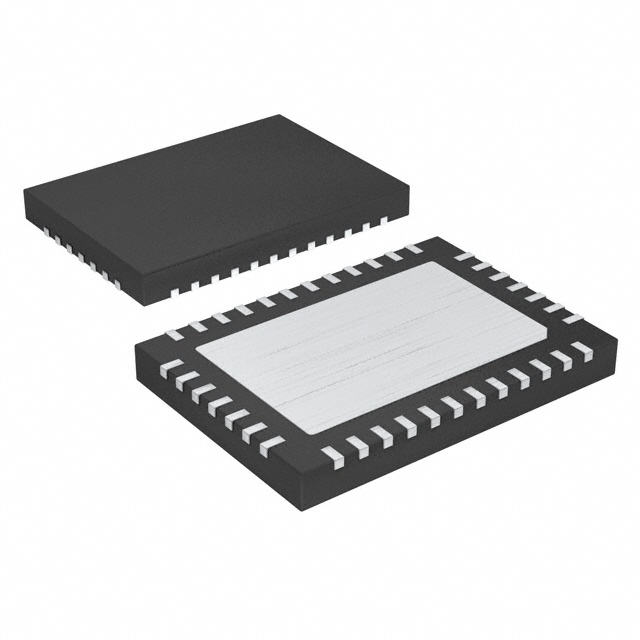

MAX16810ATU+
IC LED DRVR CTRL PWM 55MA 38TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: LED Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MAX16810ATU- is a 16-output DC-DC controller for LED driving applications. This device supports SEPIC, buck, and boost topologies, offering design flexibility for various power requirements. Featuring PWM dimming with a frequency range of 20kHz to 1MHz and a maximum output current of 55mA per channel, it is suitable for high-performance backlighting and general lighting solutions. The controller operates from an 8V to 26.5V supply voltage, with outputs capable of reaching up to 36V. Packaged in a 38-TQFN (5x7) surface-mount configuration, it is designed for operation across an industrial temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 38-WFQFN Exposed Pad |
| Voltage - Output | 36V |
| Mounting Type | Surface Mount |
| Number of Outputs | 16 |
| Frequency | 20kHz ~ 1MHz |
| Type | DC DC Controller |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | Backlight, Lighting |
| Current - Output / Channel | 55mA |
| Internal Switch(s) | No |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Supplier Device Package | 38-TQFN (5x7) |
| Dimming | PWM |
| Voltage - Supply (Min) | 8V |
| Voltage - Supply (Max) | 26.5V |
