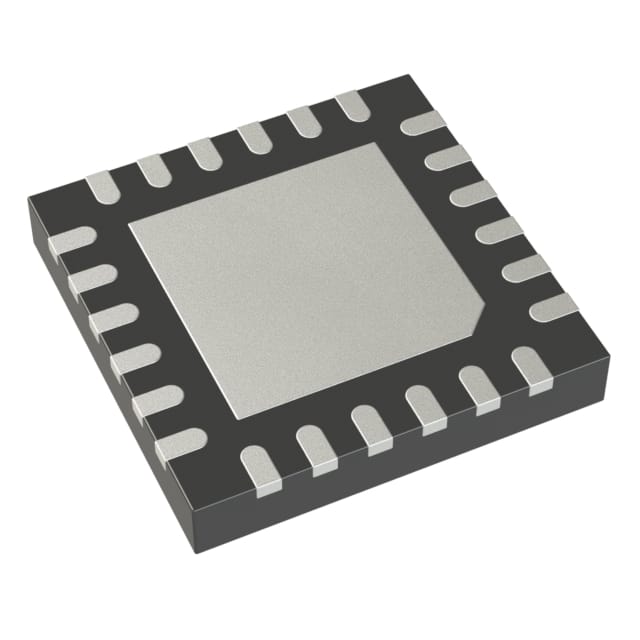

MAX1576ETG+
IC LED DRV RGLT MULT-STEP 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: LED Drivers
Quality Control: Learn More
LED Driver IC 8 Output DC DC Regulator Switched Capacitor (Charge Pump) Multi-Step Dimming 30mA, 100mA (Flash) 24-TQFN (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-WFQFN Exposed Pad |
| Voltage - Output | 5V |
| Mounting Type | Surface Mount |
| Number of Outputs | 8 |
| Frequency | 1MHz |
| Type | DC DC Regulator |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | Backlight, Camera Flash |
| Current - Output / Channel | 30mA, 100mA (Flash) |
| Internal Switch(s) | Yes |
| Topology | Switched Capacitor (Charge Pump) |
| Supplier Device Package | 24-TQFN (4x4) |
| Dimming | Multi-Step |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
