MAX3946ETG+T
IC LASER DRV 11.3GB 3.63V 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Laser Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX3946ETG-T is a single-channel laser diode driver IC designed for high-speed optical communication applications. This component supports data rates up to 11.3Gbps, making it suitable for fiber optic transceivers and optical networking infrastructure. It operates within a supply voltage range of 2.85V to 3.63V, with typical supply current consumption of 68mA. The device features integrated bias and modulation current control, with nominal bias current of 80mA and modulation current also at 80mA. Packaged in a 24-TQFN (4x4) with an exposed pad, it is designed for surface mount assembly. The MAX3946ETG-T is engineered for operation across an industrial temperature range of -40°C to 85°C. Its performance characteristics are well-suited for telecommunications and data communications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

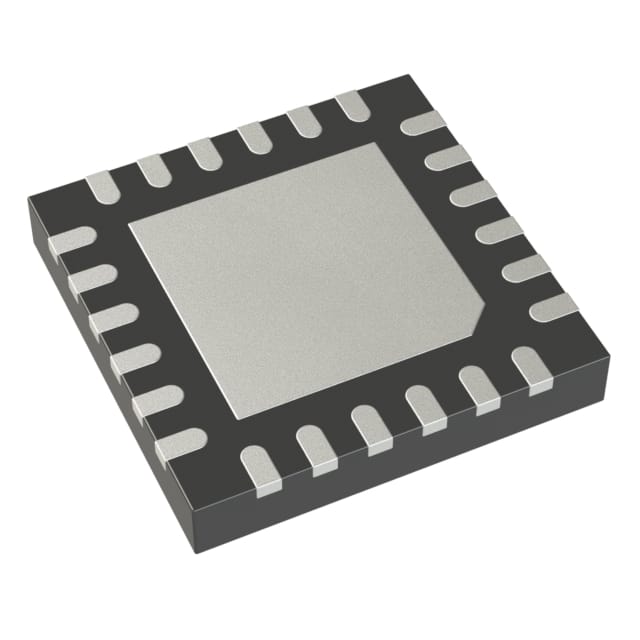

| Package / Case | 24-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Laser Diode Driver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.85V ~ 3.63V |
| Data Rate | 11.3Gbps |
| Current - Modulation | 80mA |
| Current - Bias | 80 mA |
| Supplier Device Package | 24-TQFN (4x4) |
| Number of Channels | 1 |
| Current - Supply | 68 mA |
