MAX9938TEBS+T
IC CURRENT SENSE 1 CIRCUIT 4UCSPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More

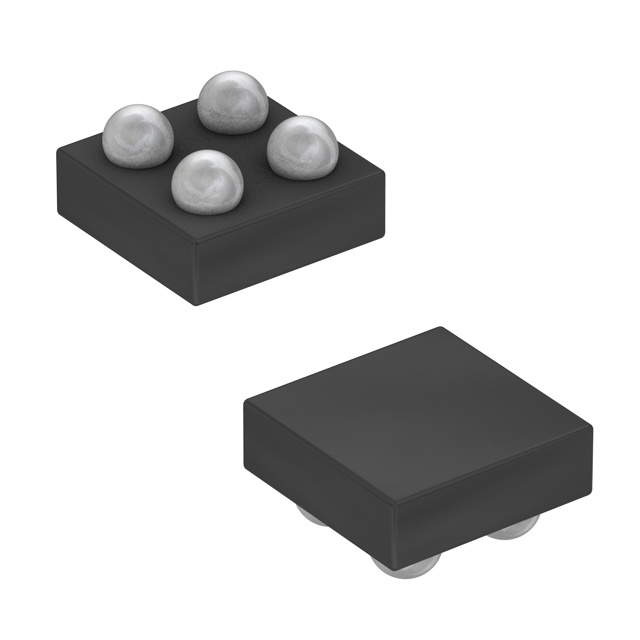

Analog Devices Inc./Maxim Integrated MAX9938TEBS-T is a precision current sense amplifier designed for efficient power management and monitoring. This single-circuit device, housed in a compact 4-UCSP (1.05x1.05mm) package, offers a wide supply voltage range from 1.6V to 28V and consumes a minimal 1.1µA of quiescent current. It features a low input offset voltage of 100µV, ensuring accurate current measurements across various operating conditions. The amplifier's -3dB bandwidth extends to 125kHz, making it suitable for applications requiring responsive current monitoring. This component is commonly utilized in portable devices, battery-powered systems, and automotive electronics where precise current sensing is critical for performance and safety. The MAX9938TEBS-T is supplied in Tape & Reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-WFBGA, CSPBGA |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Sense |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 1.1µA |
| Slew Rate | - |
| Voltage - Input Offset | 100 µV |
| Supplier Device Package | 4-UCSP (1.05x1.05) |
| Number of Circuits | 1 |
| -3db Bandwidth | 125 kHz |
| Voltage - Supply Span (Min) | 1.6 V |
| Voltage - Supply Span (Max) | 28 V |
