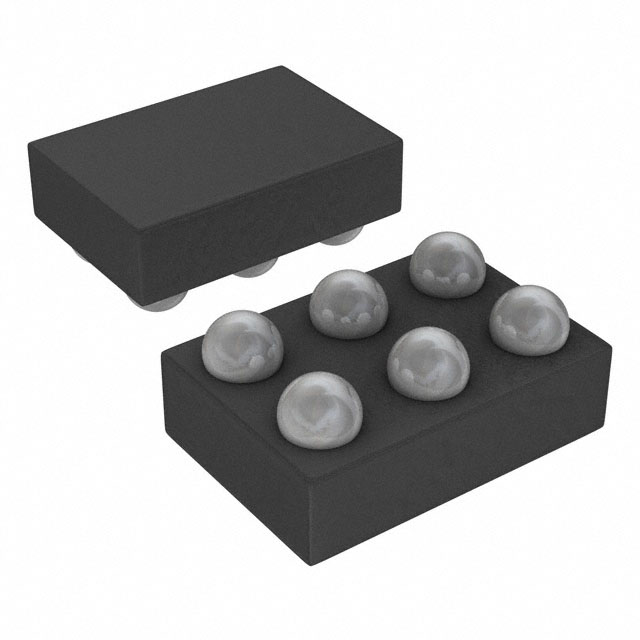

MAX4470EWT+T
IC OPAMP GP 1 CIRCUIT 6WLPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4470EWT-T is a single-circuit, general-purpose operational amplifier featuring rail-to-rail output. This component is designed for low-power applications with a supply current of only 750nA. It boasts a low input bias current of 200 pA and an input offset voltage of 500 µV. The MAX4470EWT-T offers a gain bandwidth product of 9 kHz and a slew rate of 0.002 V/µs. Its output current capability is 36 mA. Operating over a temperature range of -40°C to 85°C, this op amp supports supply voltages from 1.8V to 5.5V. The device is housed in a compact 6-WLP (1.24x0.84) package, suitable for surface mounting. It finds application in instrumentation and portable electronics. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-WFBGA, WLBGA |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 750nA |
| Slew Rate | 0.002V/µs |
| Gain Bandwidth Product | 9 kHz |
| Current - Input Bias | 200 pA |
| Voltage - Input Offset | 500 µV |
| Supplier Device Package | 6-WLP (1.24x0.84) |
| Number of Circuits | 1 |
| Current - Output / Channel | 36 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
