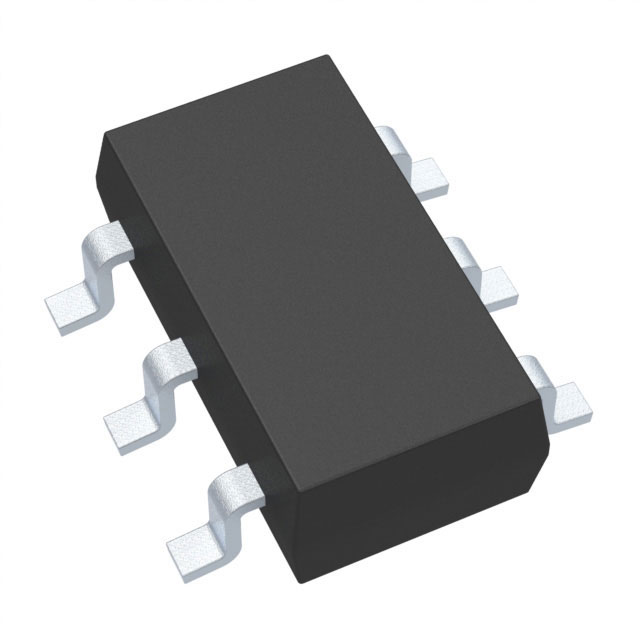

MAX44284WAUT+T
IC CURRENT SENSE 1 CIRCUIT SOT6Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX44284WAUT-T is a single-circuit current sense amplifier designed for surface mount applications. This component, housed in a SOT-6 package, operates within a supply voltage range of 1.7V to 5.5V, drawing a nominal supply current of 21µA. It features a low input bias current of 2 nA and a highly accurate input offset voltage of 10 µV. The amplifier's -3dB bandwidth extends to 1 kHz, making it suitable for applications requiring precise current monitoring. The MAX44284WAUT-T is engineered for use across various industries, including industrial automation, consumer electronics, and automotive systems, where efficient and accurate current sensing is critical. The device is supplied on a Tape & Reel (TR) for automated assembly processes and operates within a temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Current Sense |
| Operating Temperature | -40°C ~ 125°C |
| Current - Supply | 21µA |
| Slew Rate | - |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 10 µV |
| Supplier Device Package | SOT-6 |
| Number of Circuits | 1 |
| -3db Bandwidth | 1 kHz |
| Voltage - Supply Span (Min) | 1.7 V |
| Voltage - Supply Span (Max) | 5.5 V |
