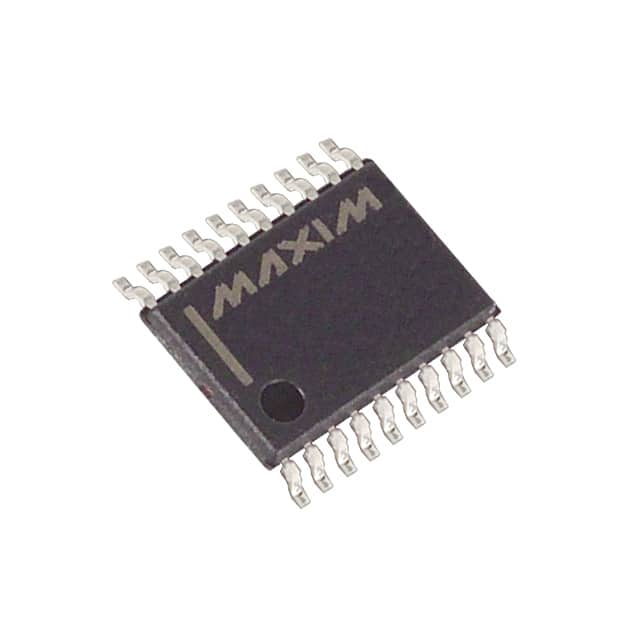

MAX4384EUP+T
IC OPAMP VFB 4 CIRCUIT 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4384EUP-T is a quad, voltage-feedback operational amplifier designed for high-performance applications. This component features a 210 MHz -3dB bandwidth and a 485V/µs slew rate, enabling fast signal processing. The amplifier type is voltage feedback, and it operates with a supply voltage range from 4.5V to 11V. Each channel draws 7.5mA of quiescent current. The MAX4384EUP-T offers rail-to-rail output capabilities and accepts an input bias current of 8.5 µA. With a 3mV input offset voltage and an output current of 75 mA per channel, it is well-suited for demanding tasks in industrial, medical, and communications systems. The device is supplied in a 20-TSSOP package and is designed for surface mounting. Operating temperature ranges from -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 27 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 7.5mA (x4 Channels) |
| Slew Rate | 485V/µs |
| Current - Input Bias | 8.5 µA |
| Voltage - Input Offset | 3 mV |
| Supplier Device Package | 20-TSSOP |
| Number of Circuits | 4 |
| Current - Output / Channel | 75 mA |
| -3db Bandwidth | 210 MHz |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 11 V |
