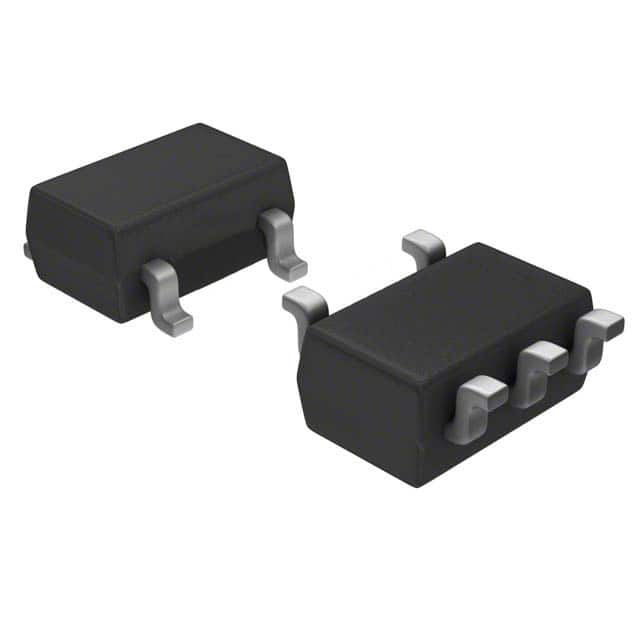

MAX4304EUK+T
IC OPAMP VFB 1 CIRCUIT SOT23-5Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4304EUK-T is a single-circuit, voltage-feedback operational amplifier designed for high-speed applications. This device offers a 740 MHz -3dB bandwidth and a 1000V/µs slew rate, making it suitable for demanding signal processing tasks. It operates from a single supply voltage range of 7V to 11V, with a typical quiescent current of 20mA. The MAX4304EUK-T features low input bias current of 32 µA and an input offset voltage of 1 mV. Packaged in a compact SOT-23-5 (SC-74A, SOT-753) surface-mount configuration, this amplifier finds application in areas such as video distribution, active filters, and general-purpose high-speed buffering. It is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Output Type | - |
| Mounting Type | Surface Mount |
| Amplifier Type | Voltage Feedback |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 20mA |
| Slew Rate | 1000V/µs |
| Current - Input Bias | 32 µA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | SOT-23-5 |
| Number of Circuits | 1 |
| -3db Bandwidth | 740 MHz |
| Voltage - Supply Span (Min) | 7 V |
| Voltage - Supply Span (Max) | 11 V |
