MAX4253EBC+T
IC OPAMP GP 2 CIRCUIT 12UCSPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4253EBC-T is a general-purpose operational amplifier featuring two push-pull, rail-to-rail output circuits. This component is designed for surface mount applications, specifically within a 10-UCSP package. Key specifications include a gain bandwidth product of 3 MHz, a slew rate of 0.3V/µs, and a low input bias current of 0.1 pA. The device operates with a supply voltage range spanning from 2.4 V to 5.5 V, drawing a quiescent current of 420µA per channel. The output current capability is 68 mA per channel, and the input offset voltage is maintained at a low 70 µV. Operating temperatures range from -40°C to 85°C. The MAX4253EBC-T finds application in instrumentation and buffer amplifier circuits across various industries. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFBGA, CSPBGA |
| Output Type | Push-Pull, Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 420µA (x2 Channels) |
| Slew Rate | 0.3V/µs |
| Gain Bandwidth Product | 3 MHz |
| Current - Input Bias | 0.1 pA |
| Voltage - Input Offset | 70 µV |
| Supplier Device Package | 10-UCSP |
| Number of Circuits | 2 |
| Current - Output / Channel | 68 mA |
| Voltage - Supply Span (Min) | 2.4 V |
| Voltage - Supply Span (Max) | 5.5 V |
Request a Quote
Clients Also Buy
MAX4251ESA-G126
IC OPAMP GP 1 CIRCUIT 8SOIC
MAX9929FAUA+
IC CURRENT SENSE 1 CIRCUIT 8UMAX

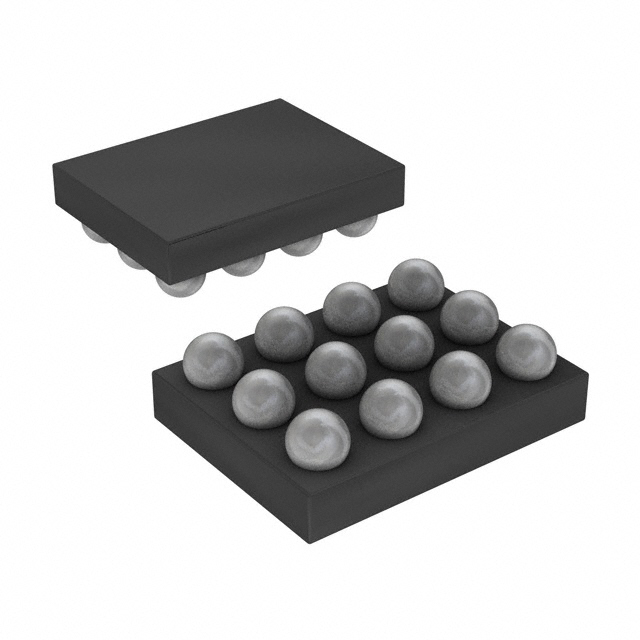

MAX4233ABC
