MAX4242EUA
IC OPAMP GP 2 CIRCUIT 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4242EUA is a dual, general-purpose operational amplifier from the Beyond-the-Rails™ series. This component features rail-to-rail output capabilities and operates with a supply voltage range of 1.8V to 5.5V. Designed for surface mounting, it is supplied in an 8-pin uMAX/uSOP package. Key specifications include a low input bias current of 2 nA, a quiescent current of 14µA per channel, and a gain bandwidth product of 90 kHz. The amplifier offers a slew rate of 0.04V/µs and an input offset voltage of 250 µV. This device is suitable for applications in battery-powered systems, portable instrumentation, and sensor signal conditioning where low power and rail-to-rail performance are critical.
Additional Information
Series: Beyond-the-Rails™RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 14µA (x2 Channels) |
| Slew Rate | 0.04V/µs |
| Gain Bandwidth Product | 90 kHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 250 µV |
| Supplier Device Package | 8-uMAX/uSOP |
| Number of Circuits | 2 |
| Current - Output / Channel | 2.5 mA |
| Voltage - Supply Span (Min) | 1.8 V |
| Voltage - Supply Span (Max) | 5.5 V |
Request a Quote
Clients Also Buy

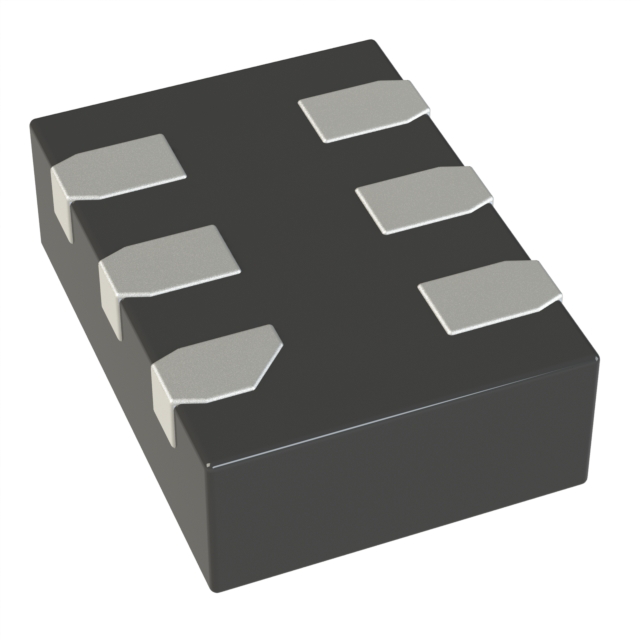

MAX20337AEFT+T
