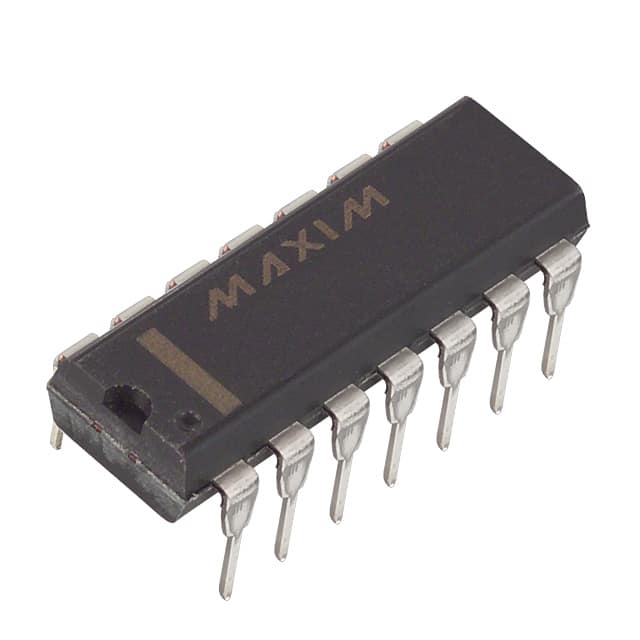

MAX418CPD+
IC OPAMP GP 4 CIRCUIT 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX418CPD- is a quad general-purpose operational amplifier featuring rail-to-rail output. This through-hole component is supplied in a 14-PDIP package, ideal for industrial applications requiring precise signal conditioning. It offers an extremely low input bias current of 0.1 pA and a minimal supply current of 1 µA per channel, making it suitable for battery-powered systems. The device boasts a gain bandwidth product of 8 kHz and a slew rate of 0.005 V/µs, with an output current capability of 600 µA per channel. Operating over a temperature range of 0°C to 70°C, the MAX418CPD- supports supply voltage spans from 2.5 V to 10 V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Rail-to-Rail |
| Mounting Type | Through Hole |
| Amplifier Type | General Purpose |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 1µA (x4 Channels) |
| Slew Rate | 0.005V/µs |
| Gain Bandwidth Product | 8 kHz |
| Current - Input Bias | 0.1 pA |
| Voltage - Input Offset | 1 mV |
| Supplier Device Package | 14-PDIP |
| Number of Circuits | 4 |
| Current - Output / Channel | 600 µA |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 10 V |
