MAX4075AOESA+
IC OPAMP GP 2 CIRCUIT 8SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX4075AOESA- is a dual-circuit, general-purpose operational amplifier from the GainAmp™ series. This surface-mount component, housed in an 8-SOIC package, features rail-to-rail output capabilities. With a gain bandwidth product of 4 MHz and a -3dB bandwidth of 90 kHz, it is suitable for applications requiring moderate signal amplification. Key specifications include a low input bias current of 0.8 pA, an output current of 22 mA per channel, and a quiescent current of 37 µA per channel. The amplifier operates over a voltage supply range of 2.5 V to 5.5 V and has an input offset voltage of 200 µV. The slew rate is 0.1V/µs. This component finds application in battery-powered devices, portable instrumentation, and sensor signal conditioning.
Additional Information
Series: GainAmp™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | Rail-to-Rail |
| Mounting Type | Surface Mount |
| Amplifier Type | General Purpose |
| Operating Temperature | -40°C ~ 70°C |
| Current - Supply | 37µA (x2 Channels) |
| Slew Rate | 0.1V/µs |
| Gain Bandwidth Product | 4 MHz |
| Current - Input Bias | 0.8 pA |
| Voltage - Input Offset | 200 µV |
| Supplier Device Package | 8-SOIC |
| Number of Circuits | 2 |
| Current - Output / Channel | 22 mA |
| -3db Bandwidth | 90 kHz |
| Voltage - Supply Span (Min) | 2.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
Request a Quote
Clients Also Buy
MAX4282ESA+
IC OPAMP GP 2 CIRCUIT 8SOIC
MAX4076ESA
IC OPAMP GP 1 CIRCUIT 8SOIC

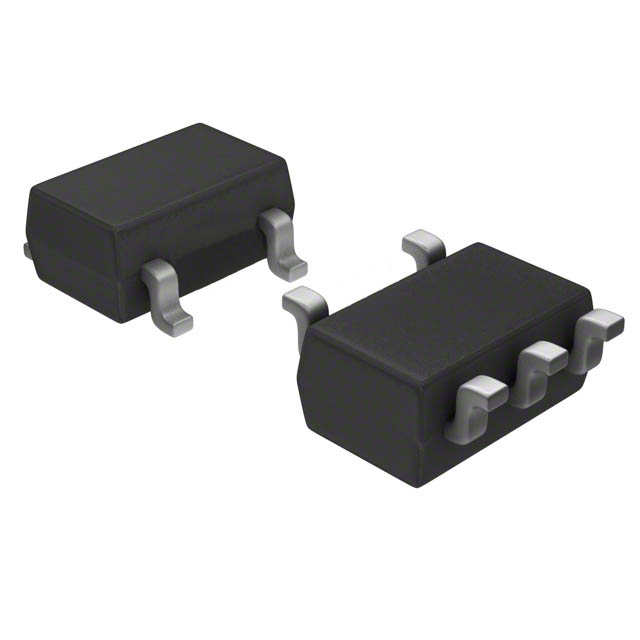

MAX4076EUK
