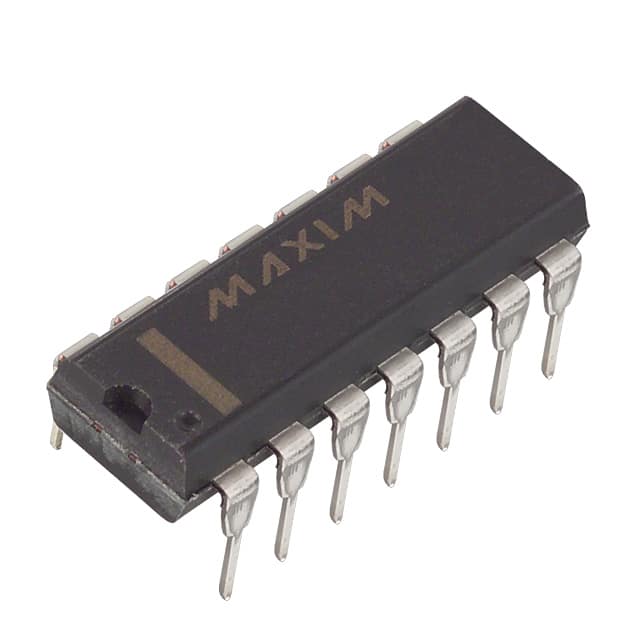

ICL7641BCPD+
IC OPAMP GP 4 CIRCUIT 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated ICL7641BCPD is a four-circuit CMOS operational amplifier featuring rail-to-rail output. This general-purpose amplifier offers a gain bandwidth product of 1.4 MHz and a slew rate of 1.6V/µs. Designed for efficient operation, it draws 1mA per channel with a supply voltage span from 2V to 16V. The low input bias current of 1 pA is ideal for high-impedance signal processing. Housed in a 14-PDIP package, this through-hole mounted component is suitable for instrumentation and buffer amplifier applications. It operates within a temperature range of 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Rail-to-Rail |
| Mounting Type | Through Hole |
| Amplifier Type | CMOS |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 1mA (x4 Channels) |
| Slew Rate | 1.6V/µs |
| Gain Bandwidth Product | 1.4 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 5 mV |
| Supplier Device Package | 14-PDIP |
| Number of Circuits | 4 |
| Voltage - Supply Span (Min) | 2 V |
| Voltage - Supply Span (Max) | 16 V |
