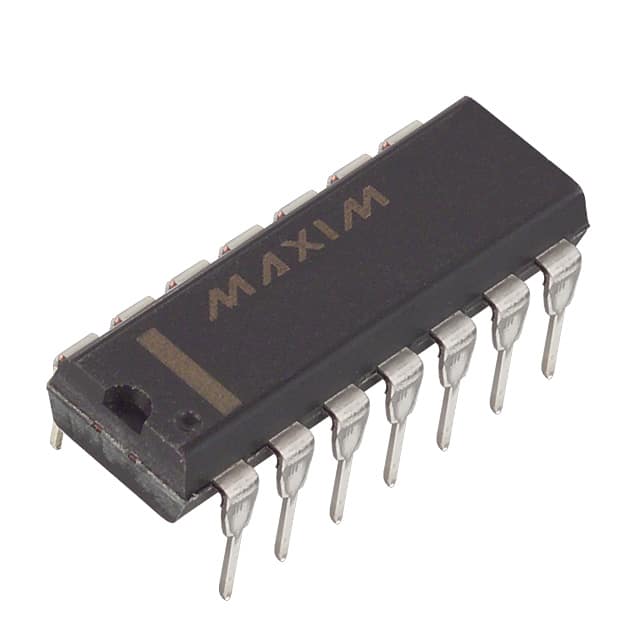

ICL7622ACPD+
IC CMOS 2 CIRCUIT 14DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Instrumentation, Op Amps, Buffer Amps
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated ICL7622ACPD- is a dual CMOS operational amplifier featuring rail-to-rail output. This component offers a 1.4 MHz gain bandwidth product and a 1.6V/µs slew rate, making it suitable for applications requiring precise signal amplification. With an input bias current of 1 pA and a supply current of 1mA per channel, the ICL7622ACPD- is designed for efficient operation across a 2V to 16V supply voltage range. The amplifier's 2mV input offset voltage contributes to accurate signal processing. Housed in a 14-PDIP package, this through-hole mounted device is commonly utilized in instrumentation and buffer amplifier circuits. Operating within a 0°C to 70°C temperature range, it finds application in consumer electronics and industrial control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Output Type | Rail-to-Rail |
| Mounting Type | Through Hole |
| Amplifier Type | CMOS |
| Operating Temperature | 0°C ~ 70°C |
| Current - Supply | 1mA (x2 Channels) |
| Slew Rate | 1.6V/µs |
| Gain Bandwidth Product | 1.4 MHz |
| Current - Input Bias | 1 pA |
| Voltage - Input Offset | 2 mV |
| Supplier Device Package | 14-PDIP |
| Number of Circuits | 2 |
| Voltage - Supply Span (Min) | 2 V |
| Voltage - Supply Span (Max) | 16 V |
