MAX7326ATG+
IC XPNDR 400KHZ I2C 24TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: I/O Expanders
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX7326ATG- is a 16-bit I/O expander featuring an I²C interface with a maximum clock frequency of 400 kHz. This device offers 16 push-pull output channels, each capable of sourcing or sinking up to 20mA. The MAX7326ATG- includes an interrupt output and a Power-On Reset (POR) feature. Designed for surface mounting, it is supplied in a 24-TQFN (4x4) package, with an exposed pad for enhanced thermal performance. The operating voltage range is 1.71V to 5.5V, and it operates within an extended temperature range of -40°C to 125°C. This component is commonly utilized in industrial automation, consumer electronics, and automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tube |

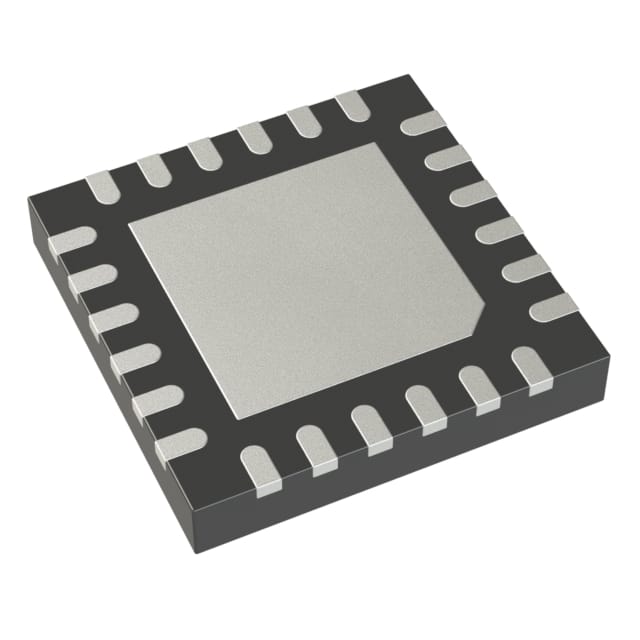

| Package / Case | 24-WFQFN Exposed Pad |
| Output Type | Push-Pull |
| Mounting Type | Surface Mount |
| Interface | I2C |
| Number of I/O | 16 |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 1.71V ~ 5.5V |
| Clock Frequency | 400 kHz |
| Interrupt Output | Yes |
| Supplier Device Package | 24-TQFN (4x4) |
| Current - Output Source/Sink | 20mA |
| Programmable | Not Verified |
