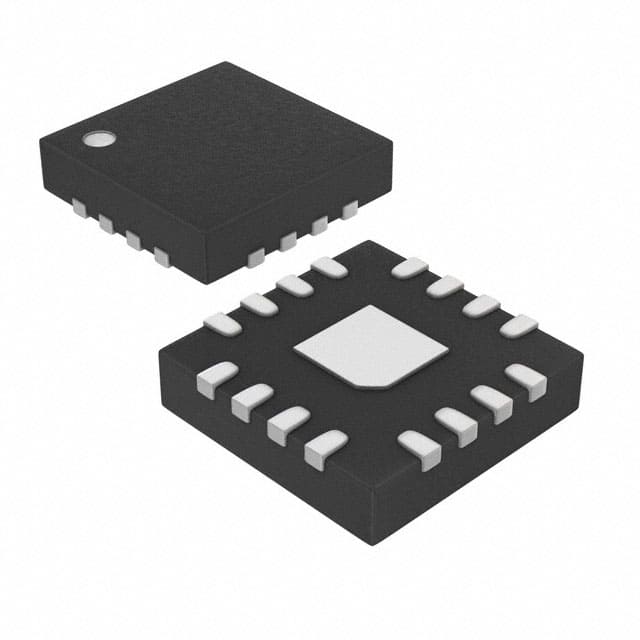

MAX7310ATE+T
IC XPNDR 400KHZ I2C SMBUS 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: I/O Expanders
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX7310ATE-T is an 8-bit I/O expander featuring I2C and SMBus interfaces. This device operates at a clock frequency of 400 kHz, supporting efficient communication in embedded systems. It provides 8 I/O pins, configurable as open-drain or push-pull outputs, with source/sink currents of 18mA and 30mA respectively. The expander includes a Power-On Reset (POR) feature for robust initialization. Designed for surface mounting, it is housed in a compact 16-TQFN (4x4) package. The operating temperature range is -40°C to 125°C, making it suitable for demanding applications in industrial automation, consumer electronics, and automotive systems. The voltage supply range is 2.3V to 5.5V.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | POR |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WQFN Exposed Pad |
| Output Type | Open Drain, Push-Pull |
| Mounting Type | Surface Mount |
| Interface | I2C, SMBus |
| Number of I/O | 8 |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.3V ~ 5.5V |
| Clock Frequency | 400 kHz |
| Interrupt Output | No |
| Supplier Device Package | 16-TQFN (4x4) |
| Current - Output Source/Sink | 18mA, 30mA |
| Programmable | Not Verified |
