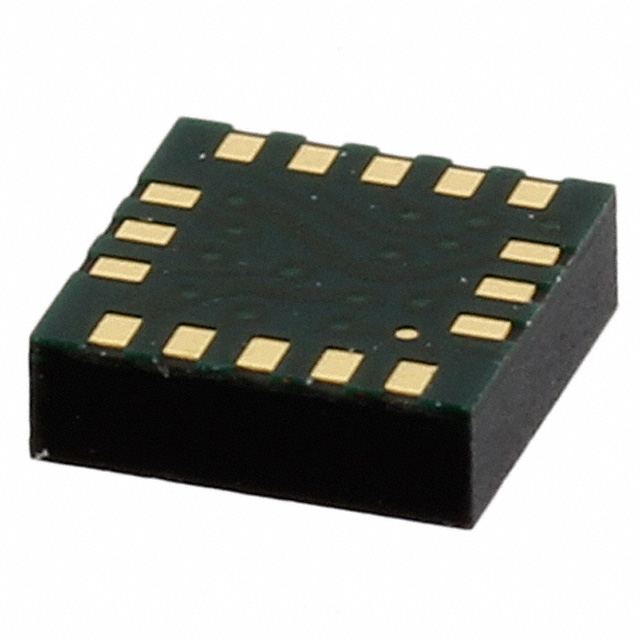

MAX21003+T
IC GYROSCOPE 2-AXIS 16LGAManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Gyroscopes
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX21003-T is a high-performance, 2-axis digital gyroscope designed for motion-sensing applications. This component offers selectable full-scale ranges from ±31.25°/s to ±1000°/s, with a configurable bandwidth from 0.1Hz up to 400Hz. Communication is facilitated via I2C and SPI interfaces. The MAX21003-T integrates temperature sensing and features adjustable bandwidth, selectable scale, and a low-power sleep mode, making it suitable for power-sensitive designs. It operates from a 1.71V to 3.6V supply and draws a typical current of 5.1 mA. Packaged in a 16-LGA (3x3mm) footprint, this gyroscope is ideal for use in consumer electronics, industrial automation, and automotive systems requiring precise angular rate measurement.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFLGA |
| Output Type | I2C, SPI |
| Type | Digital |
| Axis | X (Pitch), Y (Roll) |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.71V ~ 3.6V |
| Bandwidth | 0.1Hz ~ 400Hz |
| Range °/s | ±31.25, 62.50, 125, 250, 500, 1000 |
| Sensitivity (mV/°/s) | - |
| Sensitivity (LSB/(°/s)) | 30 ~ 960 |
| Current - Supply | 5.1 mA |
