TMC6100-LA-T
IC GATE DRVR HALF-BRIDGE 37QFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Gate Drivers
Quality Control: Learn More

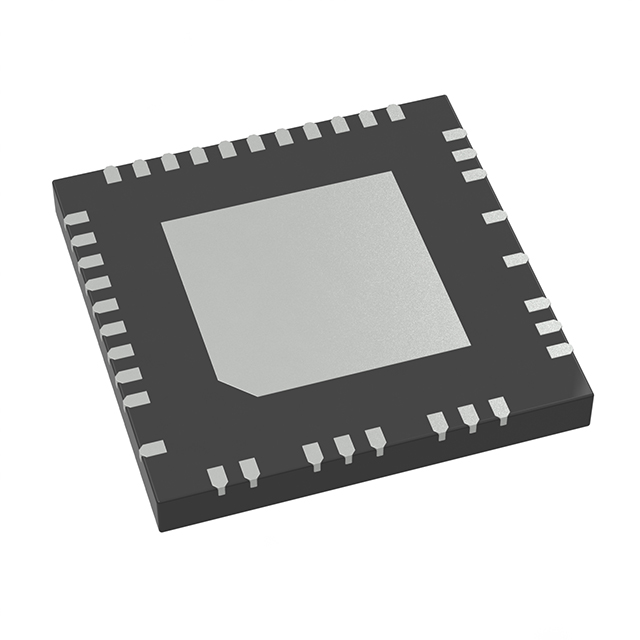

Half-Bridge Gate Driver IC 37-QFN-EP (7x7)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 37-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Voltage - Supply | 8V ~ 60V |
| Input Type | - |
| High Side Voltage - Max (Bootstrap) | 85 V |
| Supplier Device Package | 37-QFN-EP (7x7) |
| Rise / Fall Time (Typ) | 20ns, 20ns |
| Channel Type | 3-Phase |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 3 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 500mA, 500mA |
| Programmable | Not Verified |
