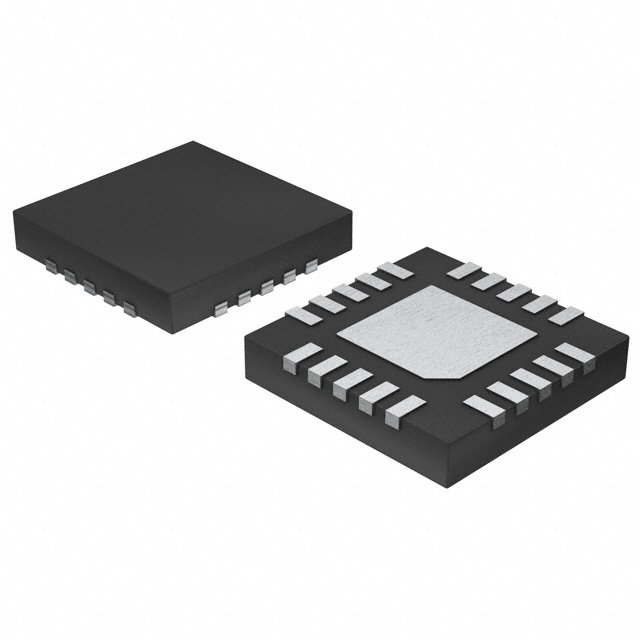

MAX8702ETP+
IC GATE DRVR HALF-BRIDGE 20TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Gate Drivers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX8732ETP- is a high-performance half-bridge gate driver IC designed for demanding applications. This non-inverting device features four channels, each capable of sourcing and sinking 1.5A peak output current, enabling efficient driving of N-channel MOSFETs in a half-bridge configuration. With a wide supply voltage range of 4.5V to 28V and operating temperatures from -40°C to 150°C, it is suitable for use in power supply systems, motor control, and various industrial automation applications. The 20-TQFN (4x4) exposed pad package ensures excellent thermal performance and ease of surface mounting. Typical rise and fall times are 16ns and 14ns, respectively, supporting high-frequency switching. The logic input voltage thresholds (VIL/VIH) are 0.8V and 2.4V, respectively.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 28V |
| Input Type | Non-Inverting |
| Supplier Device Package | 20-TQFN (4x4) |
| Rise / Fall Time (Typ) | 16ns, 14ns |
| Channel Type | Synchronous |
| Driven Configuration | Half-Bridge |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Programmable | Not Verified |
