MAX620EWN+

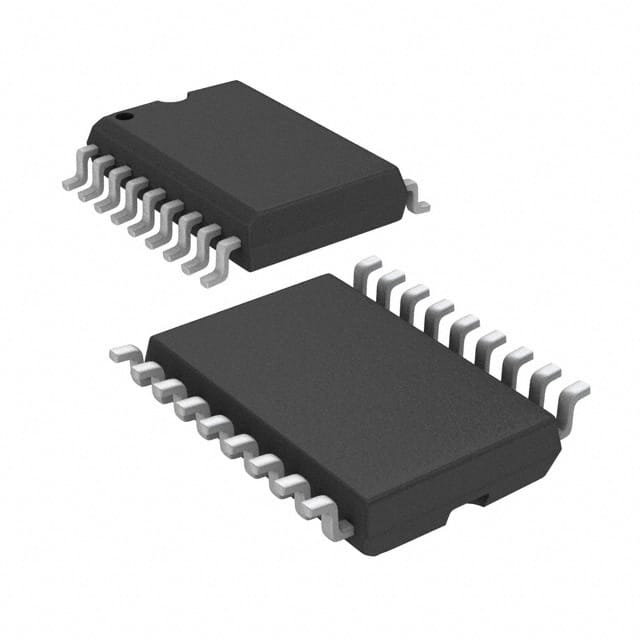

IC GATE DRVR HIGH-SIDE 18SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Gate Drivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX620EWN- is a high-side gate driver IC featuring four independent channels for N-Channel MOSFETs. This non-inverting driver operates from a 4.5V to 16.5V supply voltage, with logic input thresholds of 0.8V (VIL) and 2.4V (VIH). Designed for surface mount applications, it comes in an 18-SOIC package (0.295", 7.50mm width). The device offers a typical rise time of 1.7µs and a fall time of 2.5µs. Operating temperature ranges from -40°C to 85°C. This component is suitable for applications in industrial automation, power supplies, and motor control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 4.5V ~ 16.5V |
| Input Type | Non-Inverting |
| Supplier Device Package | 18-SOIC |
| Rise / Fall Time (Typ) | 1.7µs, 2.5µs |
| Channel Type | Independent |
| Driven Configuration | High-Side |
| Number of Drivers | 4 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | - |
| Programmable | Not Verified |
