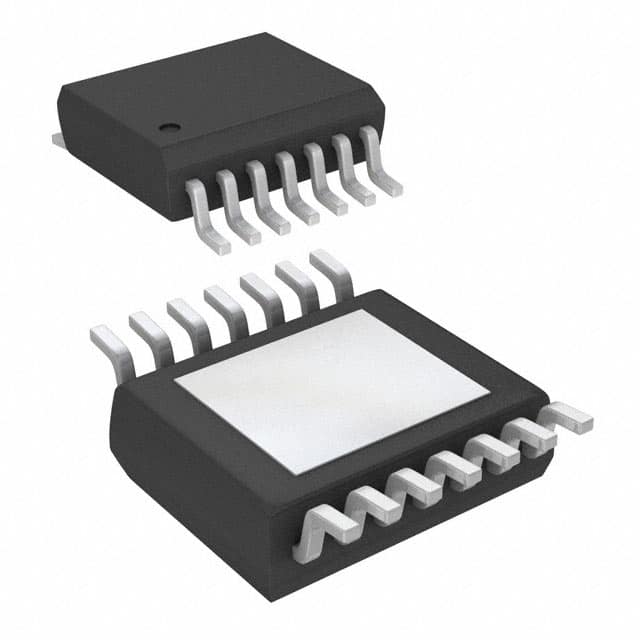

MAX5077AUD+
IC GATE DRVR LOW-SIDE 14TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Gate Drivers
Quality Control: Learn More
Low-Side Gate Driver IC RC Input Circuit 14-TSSOP-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: Not For New DesignsPackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-TSSOP (0.173"", 4.40mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 15V |
| Input Type | RC Input Circuit |
| Supplier Device Package | 14-TSSOP-EP |
| Rise / Fall Time (Typ) | 10ns, 10ns |
| Channel Type | Synchronous |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Programmable | Not Verified |
