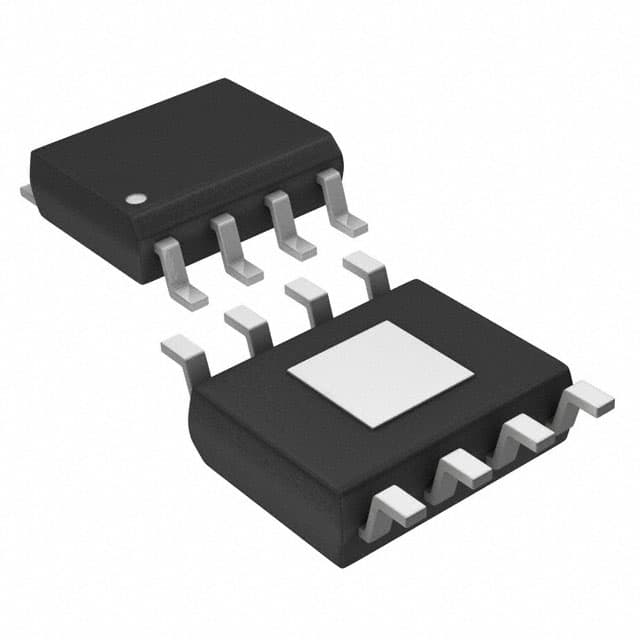

MAX5055AASA+
IC GATE DRVR LOW-SIDE 8SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Gate Drivers
Quality Control: Learn More
Low-Side Gate Driver IC Inverting 8-SOIC-EP
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: Not For New DesignsPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4V ~ 15V |
| Input Type | Inverting |
| Supplier Device Package | 8-SOIC-EP |
| Rise / Fall Time (Typ) | 32ns, 26ns |
| Channel Type | Independent |
| Driven Configuration | Low-Side |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 0.8V, 2.1V |
| Current - Peak Output (Source, Sink) | 4A, 4A |
| Programmable | Not Verified |
