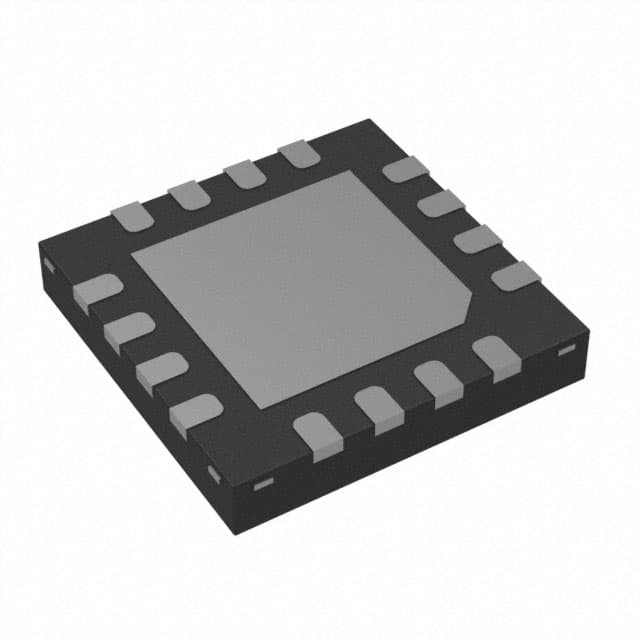

MAX14922ATE+T
IC GATE DRVR HIGH-SIDE 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Gate Drivers
Quality Control: Learn More
High-Side Gate Driver IC Non-Inverting 16-TQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 36 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 9V ~ 70V |
| Input Type | Non-Inverting |
| Supplier Device Package | 16-TQFN (3x3) |
| Rise / Fall Time (Typ) | - |
| Channel Type | Single |
| Driven Configuration | High-Side |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Logic Voltage - VIL, VIH | 1.65V, 3.65V |
| Current - Peak Output (Source, Sink) | - |
