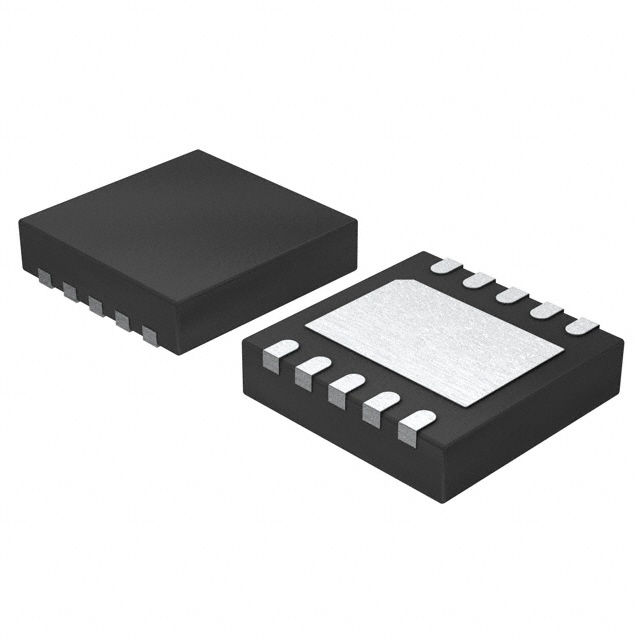

MAX13256ATB+T
IC HALF BRIDGE DRVR 850MA 10TDFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Full Half-Bridge (H Bridge) Drivers
Quality Control: Learn More
Half Bridge (2) Driver Transformers Power MOSFET 10-TDFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Internal Oscillator, Status Flag, Watchdog Timer |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Interface | Logic |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | Half Bridge (2) |
| Voltage - Supply | 8V ~ 36V |
| Rds On (Typ) | 600mOhm LS, 1Ohm HS |
| Applications | Transformers |
| Current - Output / Channel | 850mA |
| Current - Peak Output | - |
| Technology | Power MOSFET |
| Voltage - Load | 8V ~ 36V |
| Supplier Device Package | 10-TDFN (3x3) |
| Fault Protection | Current Limiting, Over Temperature, UVLO |
| Load Type | Inductive |
