MAXREFDES46#
REFERENCE DESIGNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Evaluation and Demonstration Boards and Kits
Quality Control: Learn More

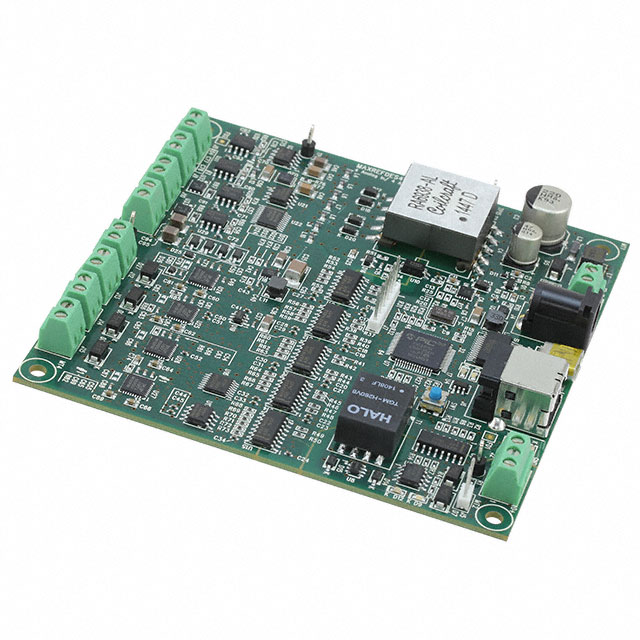

Analog Devices Inc./Maxim Integrated MAXREFDES46- is an analog I/O interface evaluation board designed for comprehensive system analysis. This reference design provides a robust platform for evaluating analog input and output functionalities, featuring a 4-channel (quad) configuration. The board is supplied as a complete kit, including the evaluation board itself and a necessary power supply, facilitating immediate deployment for testing and development. Its primary function is to serve as a high-performance analog I/O interface, enabling detailed characterization of signal conditioning, conversion, and processing. The MAXREFDES46- is utilized in applications demanding precise analog signal handling, such as industrial automation, test and measurement equipment, and advanced sensor systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Function | Analog I/O |
| Type | Interface |
| Contents | Board(s), Power Supply |
| Utilized IC / Part | - |
| Primary Attributes | 4-Channel (Quad) |
| Secondary Attributes | - |
| Embedded | - |
