MAXREFDES42#
IO-LINK RTD TEMP SENSORManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Evaluation and Demonstration Boards and Kits
Quality Control: Learn More

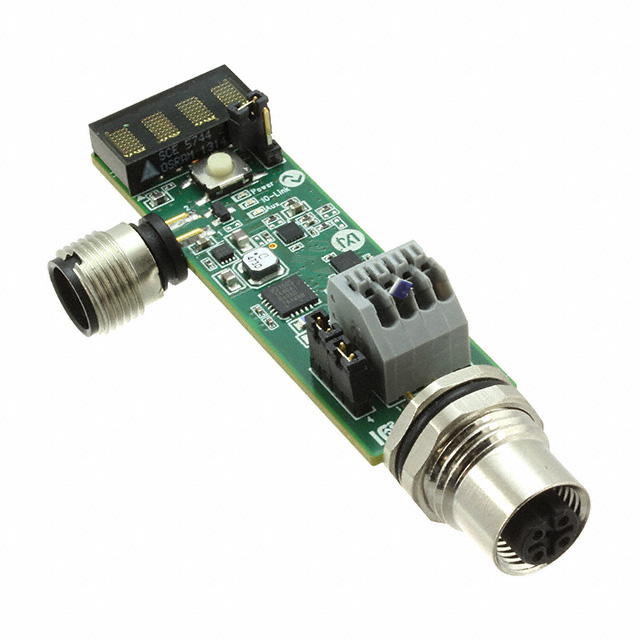

Analog Devices Inc./Maxim Integrated MAXREFDES42- is an IO-Link RTD temperature sensor evaluation board. This interface provides a complete solution for connecting Resistance Temperature Detectors (RTDs) to IO-Link master systems. The board integrates the MAX1841, a highly accurate resistance-to-digital converter, with the MAX14821, an IO-Link master transceiver, and the MAX31865, an RTD-to-digital converter, for robust temperature sensing. The embedded MCU facilitates direct communication via the IO-Link protocol. This evaluation board is designed for applications requiring precise temperature monitoring in industrial automation, process control, and harsh environment sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Function | Resistance-to-Digital Converter |
| Type | Interface |
| Contents | Board(s) |
| Utilized IC / Part | MAX1841, MAX14821, MAX31865 |
| Primary Attributes | - |
| Secondary Attributes | - |
| Embedded | Yes, MCU, 16-Bit |
