MAXREFDES14#
REFERENCE DESIGN SONOMAManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Evaluation and Demonstration Boards and Kits
Quality Control: Learn More

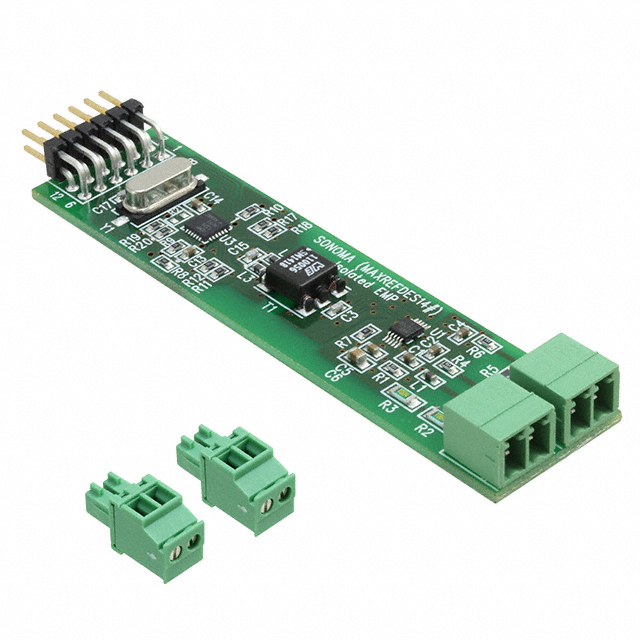

The Analog Devices Inc./Maxim Integrated MAXREFDES14- is an evaluation board designed for energy and power metering applications. This Pmod™-compatible board features the MAX78615+LMU and MAX78700 ICs, facilitating comprehensive power management evaluation. It is a key component for developing advanced energy monitoring solutions across various industries. The board is packaged in a box and includes the necessary board(s) for immediate integration into development workflows. Its functionality is specifically tailored for accurate energy and power measurement, offering a robust platform for system designers and engineers working on power-sensitive projects.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Function | Energy/Power Meter |
| Type | Power Management |
| Contents | Board(s) |
| Utilized IC / Part | MAX78615+LMU, MAX78700 |
| Primary Attributes | Pmod™-Compatible |
| Secondary Attributes | - |
| Embedded | - |
