MAX7456EVKIT+
KIT EVAL FOR MAX7456Manufacturer: Analog Devices Inc./Maxim Integrated
Categories: Evaluation and Demonstration Boards and Kits
Quality Control: Learn More

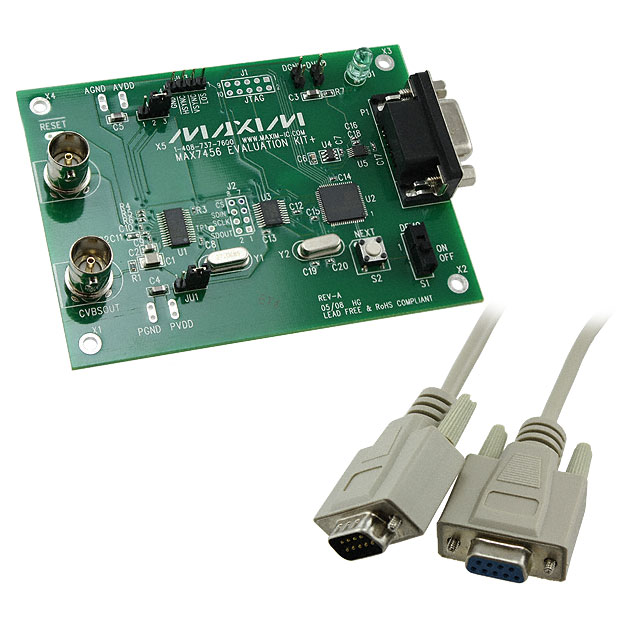

Analog Devices Inc./Maxim Integrated MAX7456EVKIT- is an evaluation kit designed to demonstrate the capabilities of the MAX7456 On-Screen Display (OSD) video IC. This evaluation board facilitates the development and testing of video overlay applications by providing a platform to configure and interact with the MAX7456. The kit includes the necessary hardware for immediate evaluation, allowing users to explore the MAX7456's functionality for adding custom graphics, text, and menus to video signals. The MAX7456 is an 8-input, 2-output video multiplexer and OSD controller that supports composite video inputs and outputs. This evaluation kit is suitable for applications in broadcast, surveillance, automotive, and industrial video systems where on-screen information is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Function | On-Screen Display (OSD) |
| Type | Video |
| Contents | Board(s) |
| Utilized IC / Part | MAX7456 |
| Primary Attributes | - |
| Secondary Attributes | Graphical User Interface (GUI) |
| Embedded | Yes, MCU, 16-Bit |
