78M6631-IMR/F
IC POWER MEAS/MON 3 PHASE 56TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Energy Metering
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated 78M6631-IMR-F, a 3-phase power measurement IC from the Teridian™ series, offers precise energy metering capabilities. This component is housed in a 56-TQFN (7x7) package, suitable for surface mount applications. It operates with a supply voltage range of 3 V to 3.6 V and draws a typical current of 9.1mA. The device features an input impedance between 40kOhm and 90kOhm and achieves a measurement error of 0.5%. Its I/O voltage levels are 2V for high and 0.8V for low. The 78M6631-IMR-F is designed for operation across a temperature range of -40°C to 85°C. This IC finds application in smart grid infrastructure, industrial power monitoring, and building energy management systems. It is supplied on a tape and reel.
Additional Information
Series: Teridian™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | 9.1mA |
| Measurement Error | 0.5% |
| Input Impedance | 40kOhm ~ 90kOhm |
| Voltage - I/O High | 2V |
| Voltage - I/O Low | 0.8V |
| Meter Type | 3 Phase |
| Supplier Device Package | 56-TQFN (7x7) |
| Voltage - Supply | 3 V ~ 3.6 V |
Request a Quote
Clients Also Buy
78M6613-SOCKET32
EVAL BOARD 78M6613 32PIN QFN
80515-FPBM-TFP2
BOARD TFP2 FLASH PROGR 73S12XX
78M6631-EVM-1

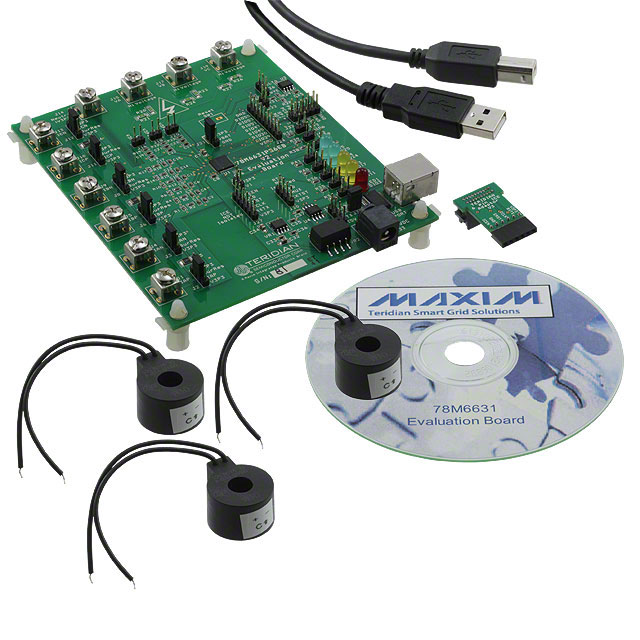

EVAL BOARD 78M6631
