71M6541DT-IGTR/F
IC ENERGY METER 64-LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Energy Metering
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated’s 71M6541DT-IGTR-F is a single-phase energy metering IC from the Single Converter Technology® series. This component is designed for high-precision energy measurement applications, offering a measurement error of 0.1%. The 71M6541DT-IGTR-F operates with a supply voltage range of 3 V to 3.6 V and features I/O voltage levels of 0.8V (low) and 2V (high). Packaged in a 64-LQFP (10x10) format, it is suitable for surface mount applications and is supplied on tape and reel. This device finds utility in the energy metering sector, supporting smart grid infrastructure and residential metering solutions. The operating temperature range is -40°C to 85°C.
Additional Information
Series: Single Converter Technology®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | - |
| Measurement Error | 0.1% |
| Input Impedance | - |
| Voltage - I/O High | 2V |
| Voltage - I/O Low | 0.8V |
| Meter Type | Single Phase |
| Supplier Device Package | 64-LQFP (10x10) |
| Voltage - Supply | 3 V ~ 3.6 V |
Request a Quote
Clients Also Buy

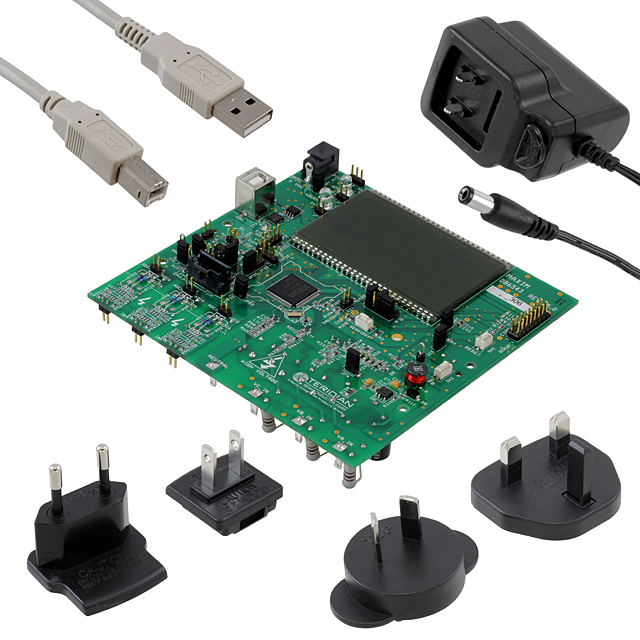

71M6543F-DB-CT
DEMO BOARD 71M6543F-DB-CT

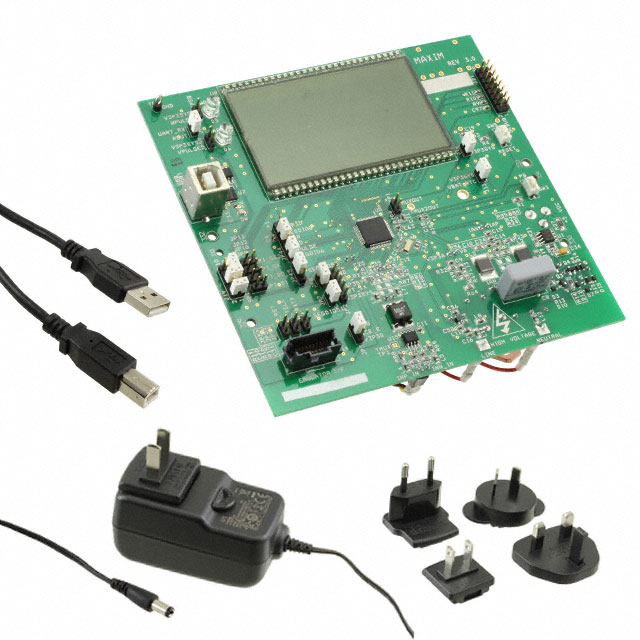

71M6541F-DB
