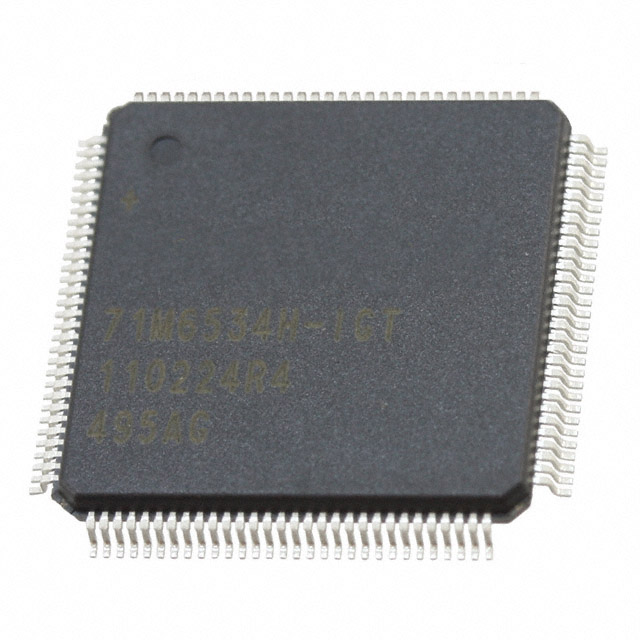

71M6534H-IGT/F
IC ENERY METER 3PH 256K 120-LQFPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Energy Metering
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's 71M6534H-IGT-F, part of the Single Converter Technology® series, is a highly accurate 3-phase energy metering IC. This component features a 256KB flash memory and is housed in a 120-LQFP (14x14) package for surface mounting. The 71M6534H-IGT-F offers a measurement error of 0.1% and operates with a voltage supply range of 3 V to 3.6 V. Its input impedance varies between 40kOhm and 90kOhm, and it supports I/O voltages from 0.8V (low) to 2V (high). The device is designed for operation across a wide temperature range of -40°C to 85°C. This IC is commonly utilized in smart grid infrastructure and advanced metering systems.
Additional Information
Series: Single Converter Technology®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 120-LQFP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply | - |
| Measurement Error | 0.1% |
| Input Impedance | 40kOhm ~ 90kOhm |
| Voltage - I/O High | 2V |
| Voltage - I/O Low | 0.8V |
| Meter Type | 3 Phase |
| Supplier Device Package | 120-LQFP (14x14) |
| Voltage - Supply | 3 V ~ 3.6 V |
