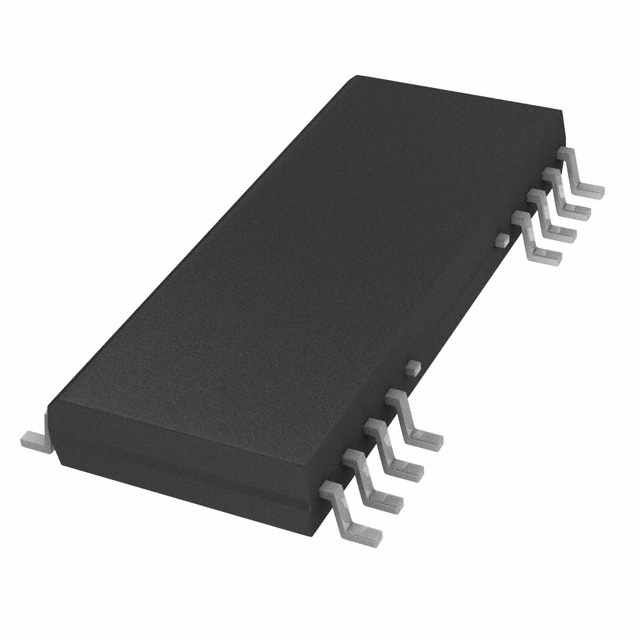

MXL1535EEWI
IC TRANSCEIVER FULL 1/1 28SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MXL1535EEWI is a full-duplex transceiver supporting RS422 and RS485 protocols. This component features a 1/1 driver/receiver configuration and operates at data rates up to 1Mbps. Designed for surface mount applications, it is housed in a 28-SOIC package with 16 leads. The MXL1535EEWI offers a supply voltage range of 3V to 5.5V and operates across an industrial temperature range of -40°C to 85°C. Receiver hysteresis is specified at 30mV. This device is commonly utilized in industrial automation, networking, and communication systems requiring robust serial data transmission. It is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width), 16 Leads |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 1Mbps |
| Protocol | RS422, RS485 |
| Supplier Device Package | 28-SOIC |
| Receiver Hysteresis | 30 mV |
| Duplex | Full |
