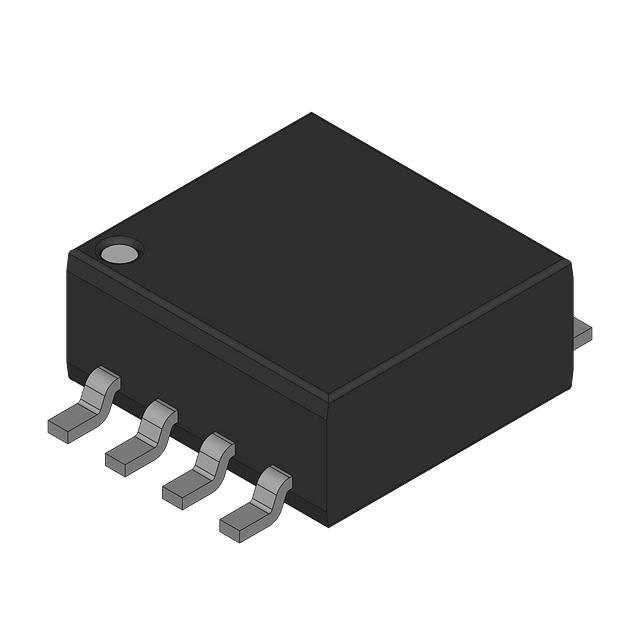

MAX485CUA
IC TRANSCEIVER HALF 1/1 8UMAXManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX485CUA is a robust transceiver featuring a 1/1 driver/receiver configuration for half-duplex communication. This electronic component supports RS422 and RS485 protocols, delivering a data rate of up to 2.5Mbps. Designed for surface mount applications, it utilizes an 8-µMAX package. The MAX485CUA operates within a voltage supply range of 4.75V to 5.25V and a temperature range of 0°C to 70°C. Key specifications include 70mV of receiver hysteresis, making it suitable for demanding industrial automation, building control, and general-purpose communication systems. The 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) equivalent package ensures efficient board space utilization.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Voltage - Supply | 4.75V ~ 5.25V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 2.5Mbps |
| Protocol | RS422, RS485 |
| Supplier Device Package | 8-µMAX |
| Receiver Hysteresis | 70 mV |
| Duplex | Half |
