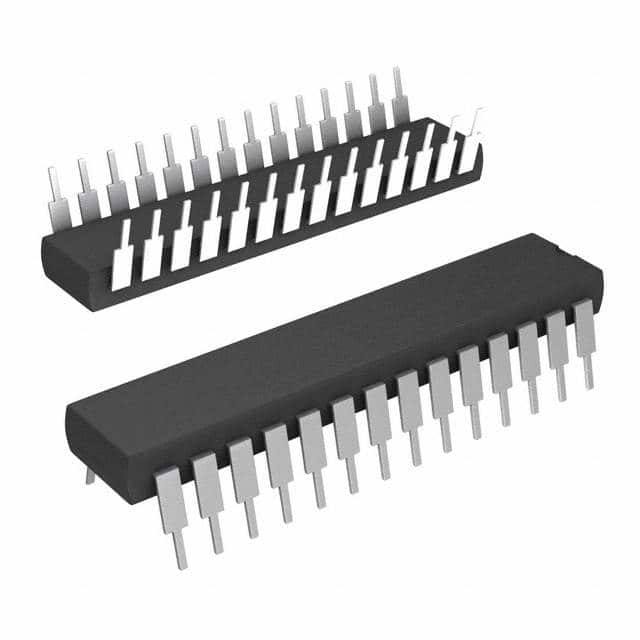

MAX3480EBCPI+
IC RS485/RS422 DATA INTRFC 28DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
The Analog Devices Inc./Maxim Integrated MAX3480EBCPI- is a half-duplex RS422 and RS485 data interface transceiver. This component features a single driver and receiver pair, operating at data rates up to 250kbps. With a supply voltage range of 3V to 3.6V, it is designed for robust communication in electrically noisy environments. The device offers 70mV of receiver hysteresis for improved noise immunity. It is supplied in a 28-PDIP (0.600", 15.24mm) through-hole mounting package, suitable for industrial automation, building control systems, and communication infrastructure applications. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3V ~ 3.6V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | 250kbps |
| Protocol | RS422, RS485 |
| Supplier Device Package | 28-PDIP |
| Receiver Hysteresis | 70 mV |
| Duplex | Half |
