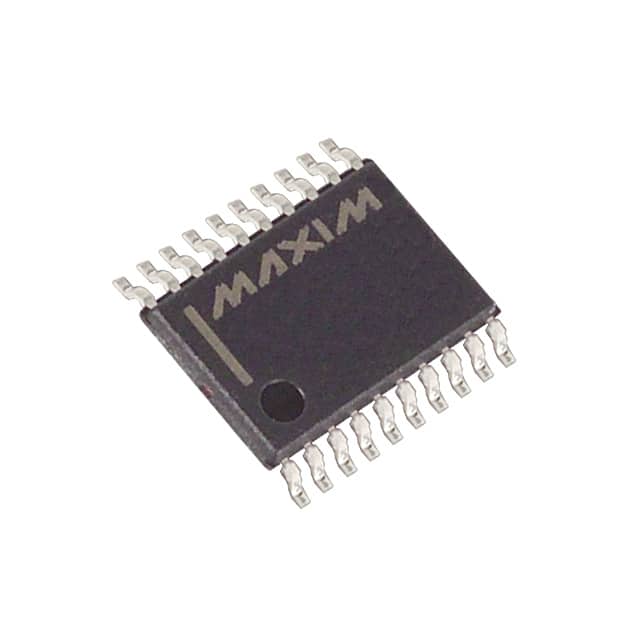

MAX3318CUP+
IC TRANSCEIVER FULL 2/2 20TSSOPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX3318CUP- is a 2/2 full transceiver designed for RS232 communication. This surface-mount component operates with a supply voltage range of 2.25V to 3V and supports data rates up to 460Kbps. Featuring 2 drivers and 2 receivers, the MAX3318CUP- is housed in a 20-TSSOP package. It offers 300mV of receiver hysteresis, contributing to robust signal integrity. This device finds application in industrial automation, consumer electronics, and telecommunications equipment requiring reliable serial data transmission. The device is supplied in a tube for ease of handling in high-volume manufacturing environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 2.25V ~ 3V |
| Number of Drivers/Receivers | 2/2 |
| Data Rate | 460Kbps |
| Protocol | RS232 |
| Supplier Device Package | 20-TSSOP |
| Receiver Hysteresis | 300 mV |
| Duplex | Full |
