MAX3245EETX+T
IC TRANSCEIVER FULL 3/5 36TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More

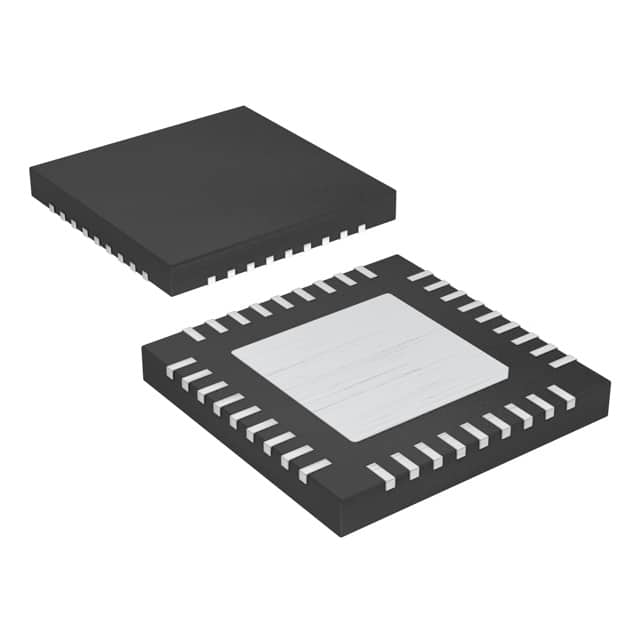

Analog Devices Inc./Maxim Integrated MAX3245EETX-T is a high-speed RS232 transceiver featuring 3 drivers and 5 receivers. This full-duplex component operates over a wide voltage range of 3V to 5.5V and supports data rates up to 1Mbps. The MAX3245EETX-T is designed for robust performance with 500mV of receiver hysteresis, ensuring reliable signal integrity in noisy environments. It is supplied in a 36-TQFN (6x6) package with an exposed pad for enhanced thermal management, suitable for surface mount applications. This transceiver is ideal for use in industrial automation, communication systems, and portable electronics where robust serial communication is critical. The device is packaged on a tape and reel for high-volume manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 36-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.5V |
| Number of Drivers/Receivers | 3/5 |
| Data Rate | 1Mbps |
| Protocol | RS232 |
| Supplier Device Package | 36-TQFN (6x6) |
| Receiver Hysteresis | 500 mV |
| Duplex | Full |
