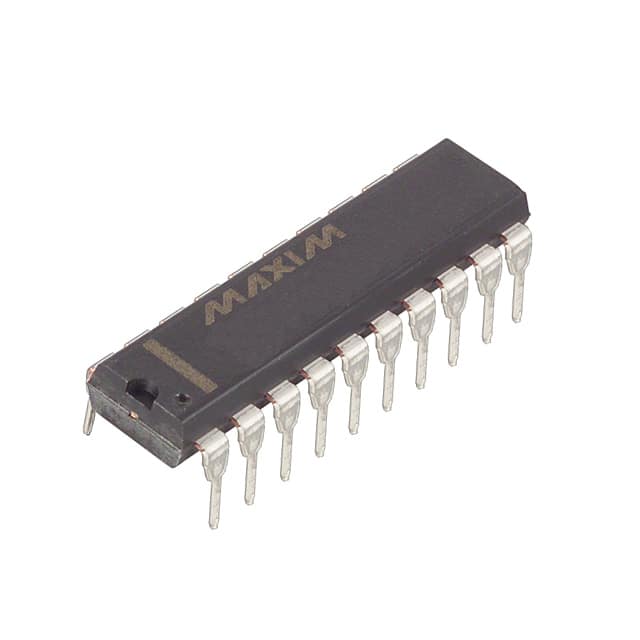

MAX3224EEPP+

IC TXRX RS-232 W/SHTDWN 20-DIP

Manufacturer: Analog Devices Inc./Maxim Integrated

Categories: Drivers, Receivers, Transceivers

Quality Control: Learn More

Analog Devices Inc./Maxim Integrated MAX3224EEPP- is a 2/2 transceiver supporting full RS-232 communication. This through-hole component operates from a 3V to 5.5V supply voltage and offers a data rate of up to 250kbps. The device features 500mV of receiver hysteresis, ensuring robust signal integrity in noisy environments. Designed for industrial applications, it is packaged in a 20-PDIP (0.300", 7.62mm) and is supplied in bulk. Its operating temperature range is -40°C to 85°C.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Download Free CAD Model:Link image
Technical Details:
PackagingBulk
Package / Case20-DIP (0.300"", 7.62mm)
Mounting TypeThrough Hole
TypeTransceiver
Operating Temperature-40°C ~ 85°C
Voltage - Supply3V ~ 5.5V
Number of Drivers/Receivers2/2
Data Rate250kbps
ProtocolRS232
Supplier Device Package20-PDIP
Receiver Hysteresis500 mV
DuplexFull
