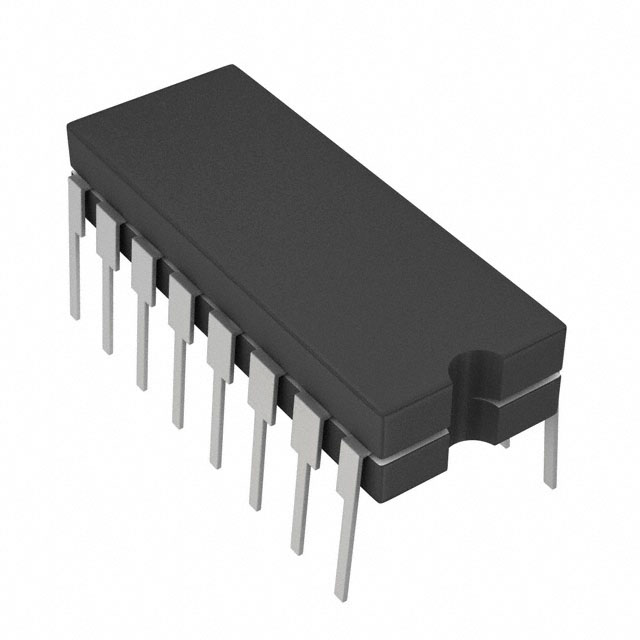

MAX234EJE
IC DRIVER 4/0 16CDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX234EJE is a quadruple RS-232 driver. This device features four independent RS-232 compliant drivers and no receivers, specifically designed for serial communication interfaces. With a data rate of up to 120kbps, the MAX232EJE is suitable for applications requiring reliable data transfer over RS-232 protocols. The component operates within a voltage supply range of 4.5V to 5.5V and is specified for an industrial operating temperature range of -40°C to 85°C. The 16-CDIP (0.300") package facilitates through-hole mounting, making it a robust choice for demanding environments. This component finds application in industrial automation, test and measurement equipment, and various communication systems.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | Driver |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 4/0 |
| Data Rate | 120kbps |
| Protocol | RS232 |
| Supplier Device Package | 16-CDIP |
| Duplex | - |
