MAX231MJD
IC TRANSCEIVER 2/2 14CDIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MAX232MJD is a robust RS-232 transceiver featuring a 2 drivers/2 receivers configuration. This component is designed for reliable serial communication in demanding environments. Operating from a single +5V supply, or with dual supplies of +/-5V or +/-13.2V, it supports data rates up to 120kbps. The MAX232MJD offers 500mV of receiver hysteresis, ensuring signal integrity in the presence of noise. Its through-hole mounting and 14-CDIP package make it suitable for applications requiring durable connections. This transceiver is commonly utilized in industrial automation, aerospace, and military systems where reliable serial data transmission is critical. The device operates across an extended temperature range of -55°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

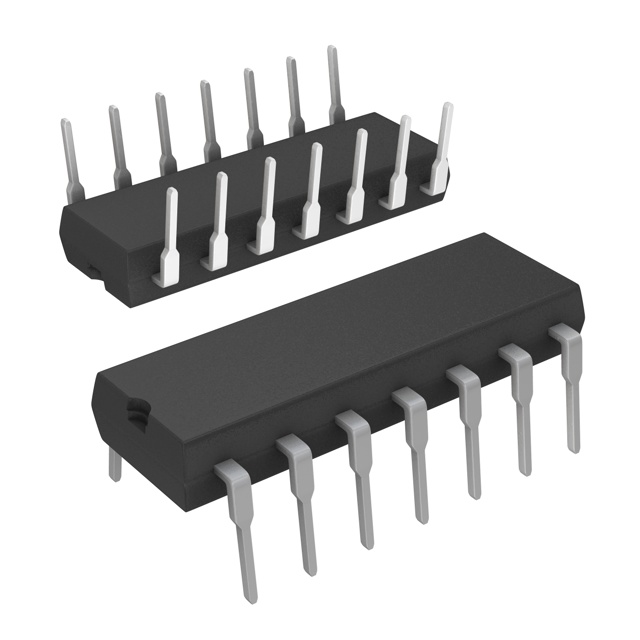

| Package / Case | 14-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | Transceiver |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply | 5V, 7.5V, 13.2V |
| Number of Drivers/Receivers | 2/2 |
| Data Rate | 120kbps |
| Protocol | RS232 |
| Supplier Device Package | 14-CDIP |
| Receiver Hysteresis | 500 mV |
| Duplex | - |
