MAX206CNG+
IC TRANSCEIVER FULL 4/4 24DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More

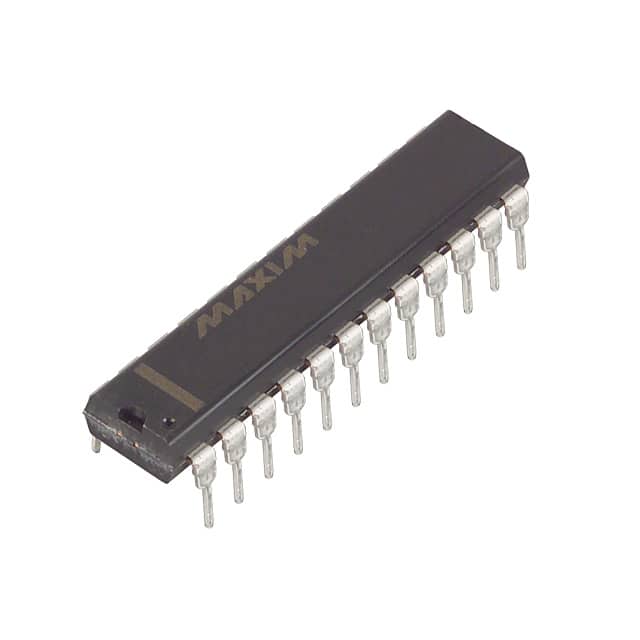

Analog Devices Inc./Maxim Integrated's MAX206CNG- is a full RS232 transceiver featuring 4 drivers and 3 receivers. This component, housed in a 24-pin DIP package (0.300" width), operates with a supply voltage range of 4.5V to 5.5V. It supports a data rate of up to 120kbps and is designed for through-hole mounting. The MAX206CNG- exhibits receiver hysteresis of 500mV, ensuring robust signal reception. Its typical applications span industrial automation, data acquisition systems, and communication interfaces requiring reliable serial data transmission. The device is supplied in tube packaging for efficient handling in manufacturing environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Number of Drivers/Receivers | 4/3 |
| Data Rate | 120kbps |
| Protocol | RS232 |
| Supplier Device Package | 24-PDIP |
| Receiver Hysteresis | 500 mV |
| Duplex | Full |
