78Q2123S/F
IC TRANSCEIVER FULL 1/1 16TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Drivers, Receivers, Transceivers
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated 78Q2123S-F is a single-port, full-duplex Ethernet transceiver from the MicroPHY™ series. This device, packaged in a 16-TQFN (5x5) with an exposed pad, offers robust performance for demanding applications. Operating at a 3.3V supply voltage, the 78Q2123S-F integrates a 1/1 driver/receiver configuration, supporting Ethernet protocols. Its surface mount design facilitates efficient board assembly. This component finds application in industrial automation, networking infrastructure, and consumer electronics where reliable Ethernet connectivity is critical. The operating temperature range is 0°C to 70°C.
Additional Information
Series: MicroPHY™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Transceiver |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply | 3.3V |
| Number of Drivers/Receivers | 1/1 |
| Data Rate | - |
| Protocol | Ethernet |
| Supplier Device Package | 16-TQFN (5x5) |
| Duplex | Full |
Request a Quote
Clients Also Buy
78Q2123-DB
BOARD DEMO 78Q2123 78Q2133

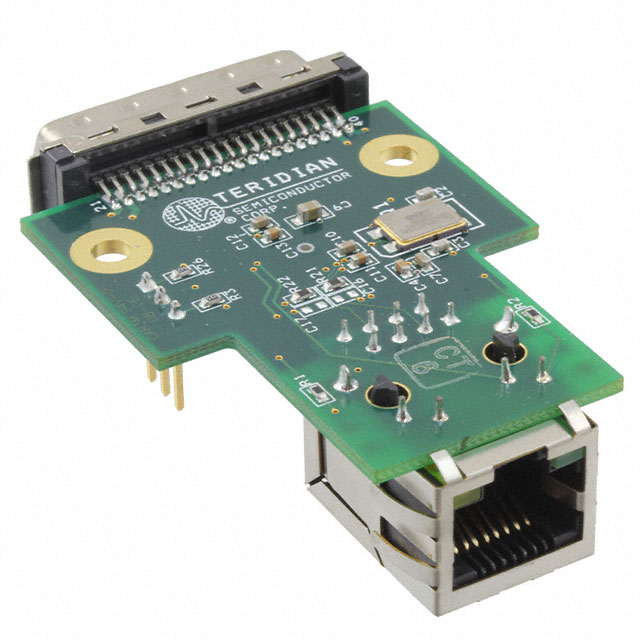

78Q2133-DB
