MAX6961ATH+
IC DRVR LED 8X8 44-TQFNManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Display Drivers
Quality Control: Learn More

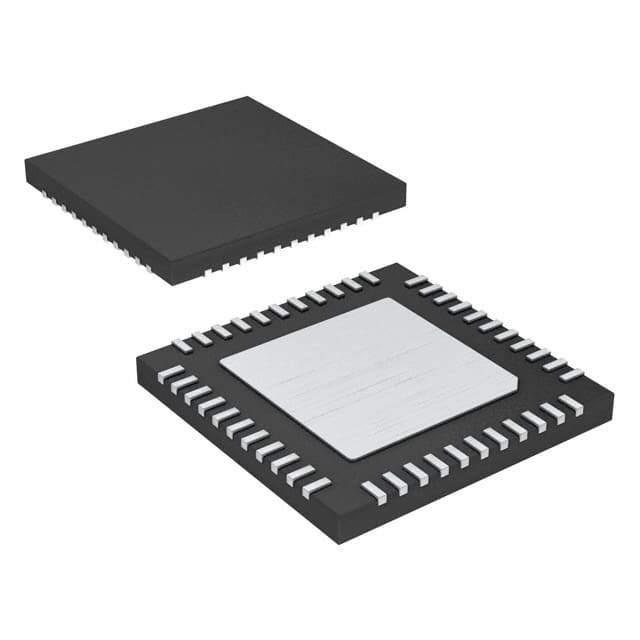

Analog Devices Inc./Maxim Integrated MAX6961ATH- is an 8x8 LED direct drive matrix display driver. This component features an 8x8 configuration, ideal for custom character generation and complex graphical displays. The MAX6961ATH- utilizes a 4-wire serial interface for efficient communication and control. Designed for surface mount applications, it is housed in a 44-TQFN (7x7) package with an exposed pad for enhanced thermal performance. Operating within a supply voltage range of 2.7V to 3.6V, this driver is suitable for applications requiring low power consumption, with a typical supply current of 7.5 mA. It operates across an industrial temperature range from -40°C to 125°C. This device finds application in various industries including industrial automation, consumer electronics, and medical equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 44-WFQFN Exposed Pad |
| Display Type | LED |
| Mounting Type | Surface Mount |
| Interface | 4-Wire Serial |
| Configuration | 8 x 8 (Matrix) |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.7V ~ 3.6V |
| Digits or Characters | Any Digit Type |
| Supplier Device Package | 44-TQFN (7x7) |
| Current - Supply | 7.5 mA |
