MX7545LN+

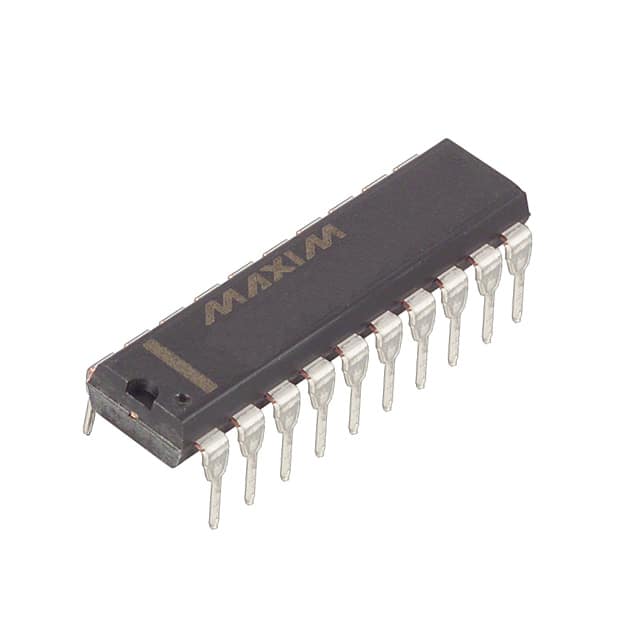

IC DAC 12BIT A-OUT 20DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MX7545LN- is a 12-bit, single-channel, R-2R ladder Digital-to-Analog Converter (DAC) housed in a 20-PDIP package. This component features a parallel data interface and requires an external voltage reference. The unbuffered current output settles within 2µs. Operating across an analog and digital supply voltage range of 5V to 15V, the MX7545LN- exhibits typical integral non-linearity (INL) and differential non-linearity (DNL) of ±0.5 LSB and ±1 LSB respectively. This through-hole mounted device is suitable for applications in industrial control, data acquisition, and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: Product Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| Settling Time | 2µs |
| Supplier Device Package | 20-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
