MX7545GLN+

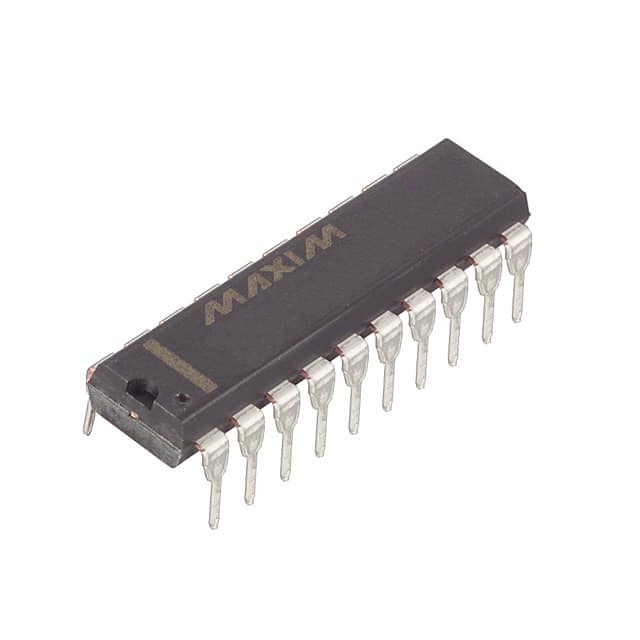

IC DAC 12BIT MULT 20-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MX7545GLN- is a 12-bit, R-2R architecture digital-to-analog converter (DAC) with a single unbuffered current output. This component features a parallel data interface and requires an external voltage reference. The INL/DNL specifications are ±0.5 LSB maximum and ±1 LSB maximum, respectively. With a settling time of 2µs, it is suitable for applications requiring precise and timely analog signal generation. The device operates with analog and digital supply voltages ranging from 5V to 15V and is housed in a 20-PDIP package with through-hole mounting. This DAC is commonly utilized in industrial automation, test and measurement equipment, and consumer electronics where accurate voltage or current control is essential.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| Settling Time | 2µs |
| Supplier Device Package | 20-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
