MX7541AKEWN+T

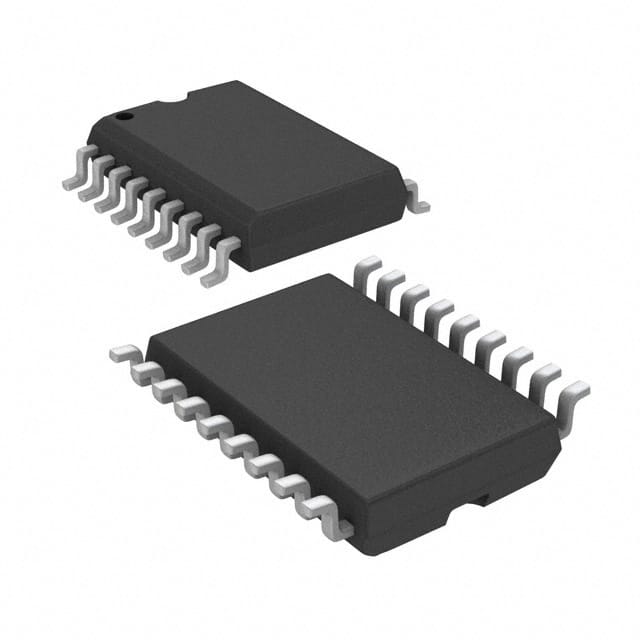

IC DAC 12BIT A-OUT 18SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MX7541AKEWN-T is a 12-bit, single, current-output digital-to-analog converter (DAC) housed in an 18-SOIC package designed for surface mounting. This R-2R architecture converter features a parallel data interface and supports differential outputs. It operates with analog and digital supply voltages ranging from 5V to 16V, offering a typical settling time of 600ns. Integral and differential nonlinearity are specified at ±0.5 LSB maximum. The MX7541AKEWN-T is suitable for applications in industrial automation, test and measurement, and medical instrumentation where precise analog output generation is critical. This component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V ~ 16V |
| Voltage - Supply, Digital | 5V ~ 16V |
| Settling Time | 600ns (Typ) |
| Supplier Device Package | 18-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
