MX7541AKCWN+T

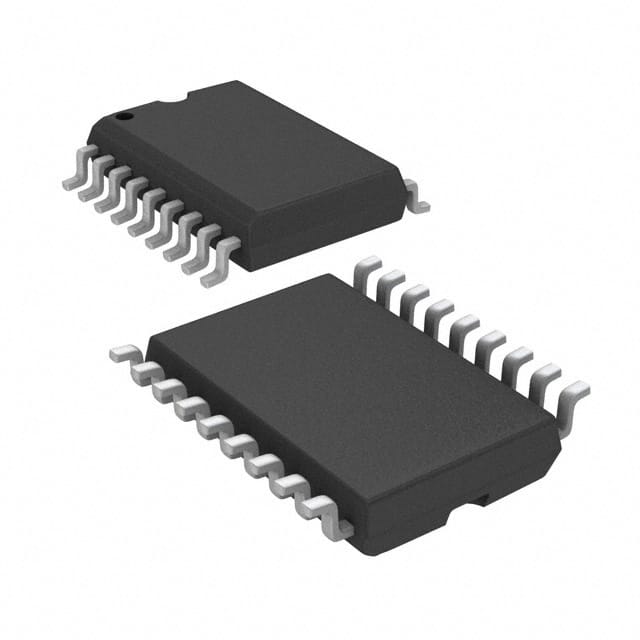

IC DAC 12BIT A-OUT 18SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated's MX7541AKCWN-T is a 12-bit, single-channel digital-to-analog converter (DAC) featuring an R-2R architecture. This component offers a parallel data interface and a differential output, providing high accuracy with INL/DNL specifications of ±0.5 LSB maximum. The device supports both analog and digital supply voltages from 5V to 16V, with an unbuffered current output and an external reference voltage input. Designed for surface mount applications, it is supplied in an 18-SOIC package and has a typical settling time of 600ns. The MX7541AKCWN-T is suitable for a wide range of applications including industrial automation, test and measurement equipment, and consumer electronics. The operating temperature range is 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V ~ 16V |
| Voltage - Supply, Digital | 5V ~ 16V |
| Settling Time | 600ns (Typ) |
| Supplier Device Package | 18-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
