MX7535KCWI+

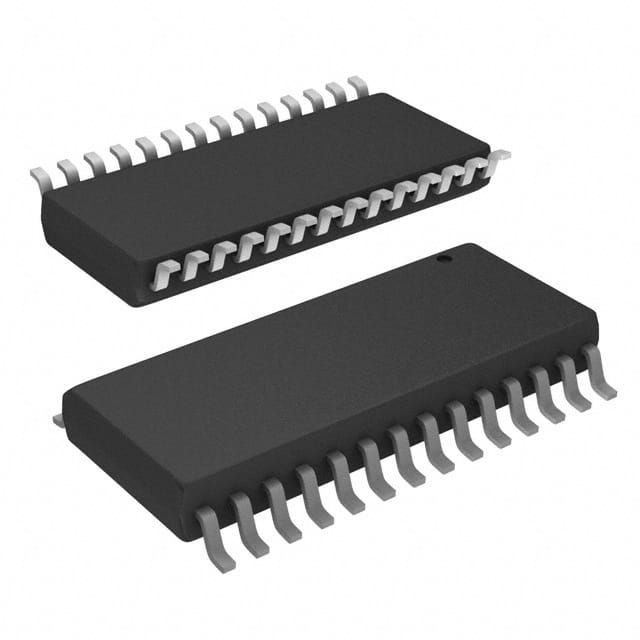

IC DAC 14BIT MPU COMP 28-SOICManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MX7535KCWI- is a 14-bit, single-channel digital-to-analog converter (DAC) featuring an R-2R architecture. This component utilizes a parallel data interface for MPU compatibility. The MX7535KCWI- offers an unbuffered current output and requires an external voltage reference. Key specifications include a maximum INL/DNL of ±1 LSB and a settling time of 1.5µs. It operates with analog and digital supply voltages ranging from 11.4V to 15.75V and is housed in a 28-SOIC surface-mount package, suitable for industrial and consumer electronics applications where precise analog signal generation is required. The operating temperature range is from 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-SOIC (0.295"", 7.50mm Width) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 11.4V ~ 15.75V |
| Voltage - Supply, Digital | 11.4V ~ 15.75V |
| Settling Time | 1.5µs |
| Supplier Device Package | 28-SOIC |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
