MX7528JEPP+

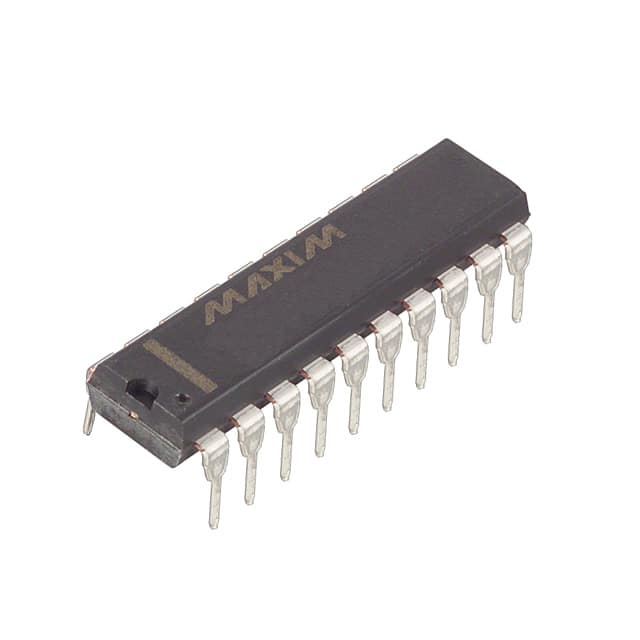

IC DAC 8BIT DL MULT 20-DIPManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MX7528JEPP is an 8-bit, dual-multiplying digital-to-analog converter (DAC) featuring an R-2R architecture. This component offers a parallel data interface and requires an external reference voltage. It provides two buffered current outputs, capable of settling within 400ns. The MX7528JEPP operates with analog and digital supply voltages ranging from 5V to 15V. Integral and differential linearity are specified at ±1 LSB maximum. This device is housed in a 20-PDIP through-hole package and is suitable for applications in industrial automation and test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Output Type | Current - Unbuffered |
| Mounting Type | Through Hole |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| Settling Time | 400ns |
| Supplier Device Package | 20-PDIP |
| Architecture | R-2R |
| Number of D/A Converters | 2 |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) |
| Differential Output | No |
| Programmable | Not Verified |
