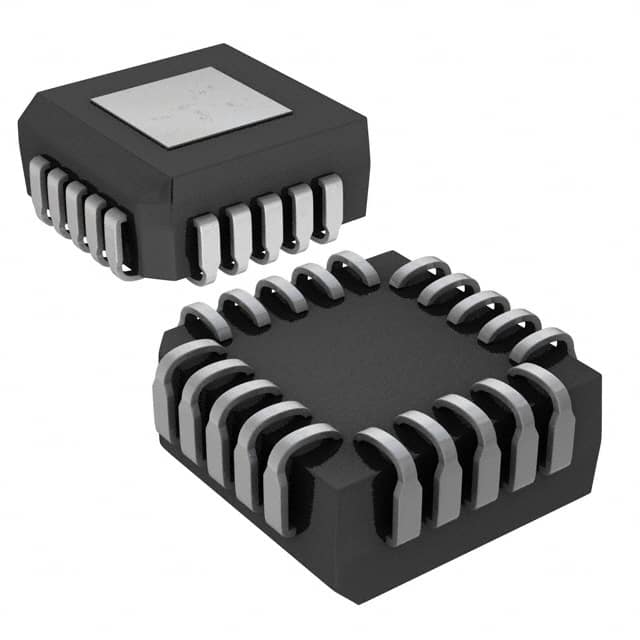

MX7524JP+
IC DAC 8BIT MULT 20-PLCCManufacturer: Analog Devices Inc./Maxim Integrated
Categories: Digital to Analog Converters (DAC)
Quality Control: Learn More
Analog Devices Inc./Maxim Integrated MX7524JP- is an 8-bit, multiplying digital-to-analog converter (DAC) featuring an R-2R architecture. This single-channel device offers a parallel data interface for efficient conversion. Key specifications include a maximum INL/DNL of ±0.5 LSB and ±1 LSB respectively, with a settling time of 500ns. The unbuffered current output supports differential operation. This component operates with analog and digital supply voltages ranging from 5V to 15V and is specified for an operating temperature range of 0°C to 70°C. The MX7524JP- is supplied in a 20-PLCC (9x9) surface-mount package, suitable for applications in industrial control and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-LCC (J-Lead) |
| Output Type | Current - Unbuffered |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V ~ 15V |
| Voltage - Supply, Digital | 5V ~ 15V |
| Settling Time | 500ns |
| Supplier Device Package | 20-PLCC (9x9) |
| Architecture | R-2R |
| Number of D/A Converters | 1 |
| INL/DNL (LSB) | ±0.5 (Max), ±1 (Max) |
| Differential Output | Yes |
| Programmable | Not Verified |
